1 Set Universal Billet GT3582 Turbocharger Kit + Intercooler + 2.5″ Turbo Pipe Piping

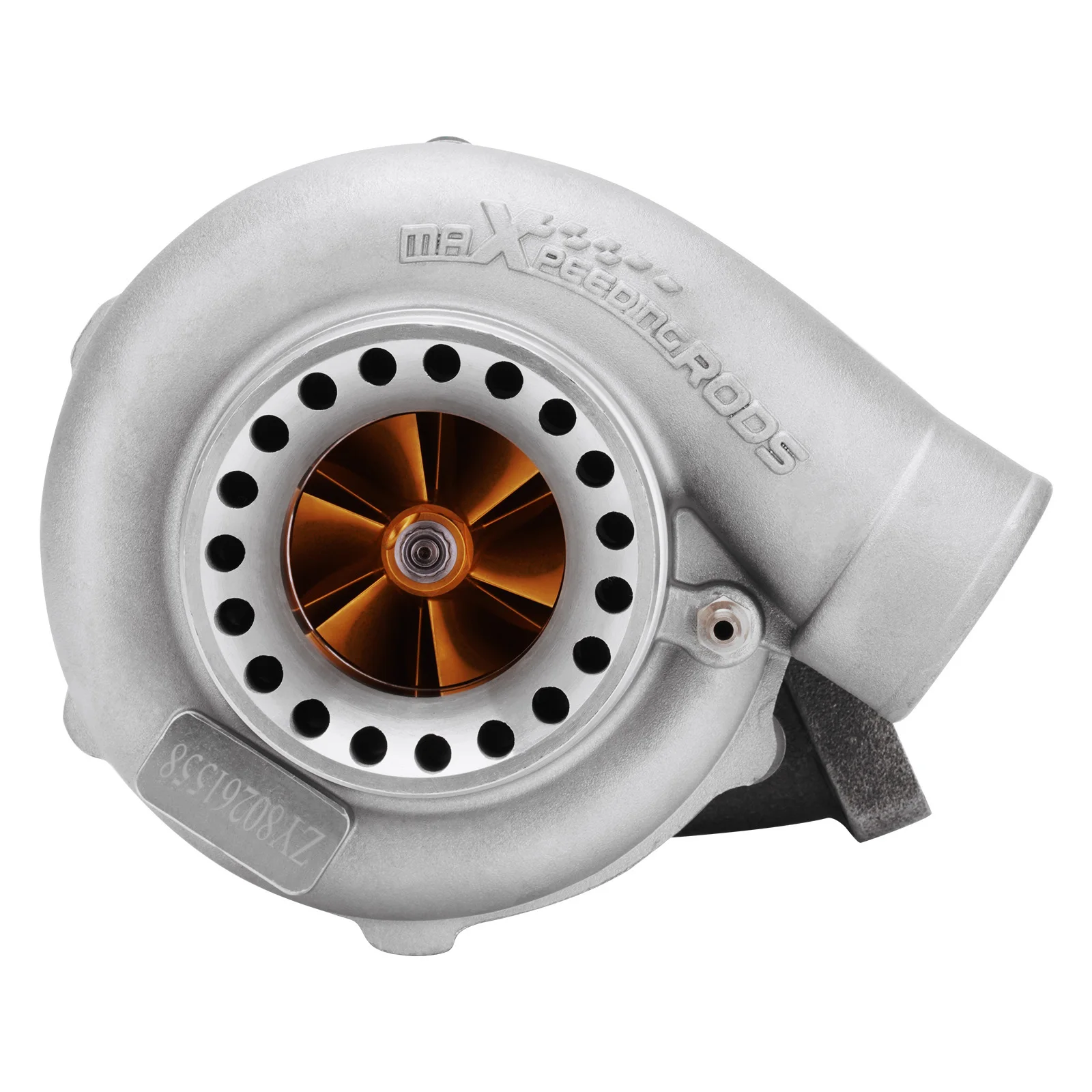

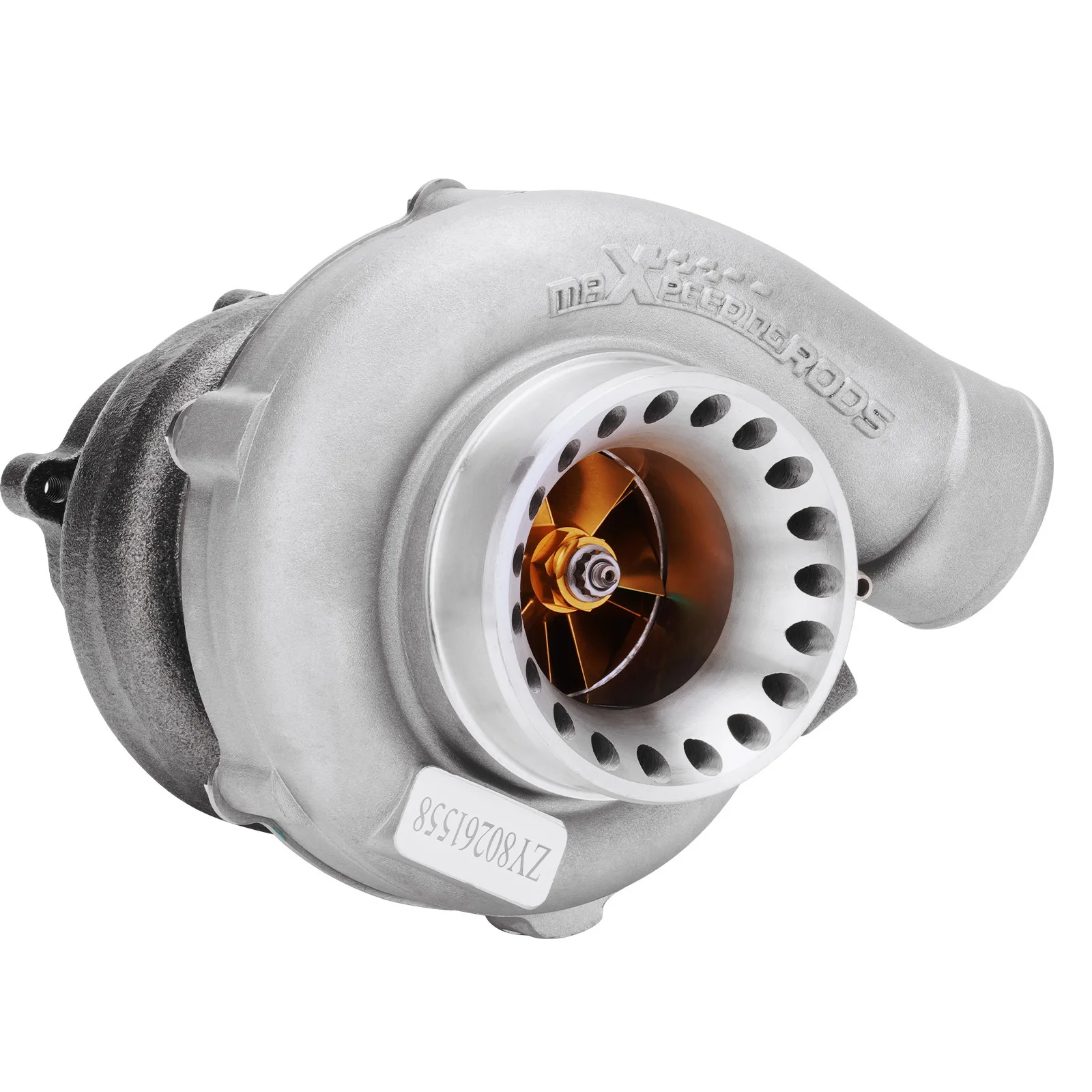

Billet Turbo GT3582 Universal Turbocharger Intercooler Piping Kits

Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Specification:

Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Wet Float
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Wastegate: W/O Wastegate

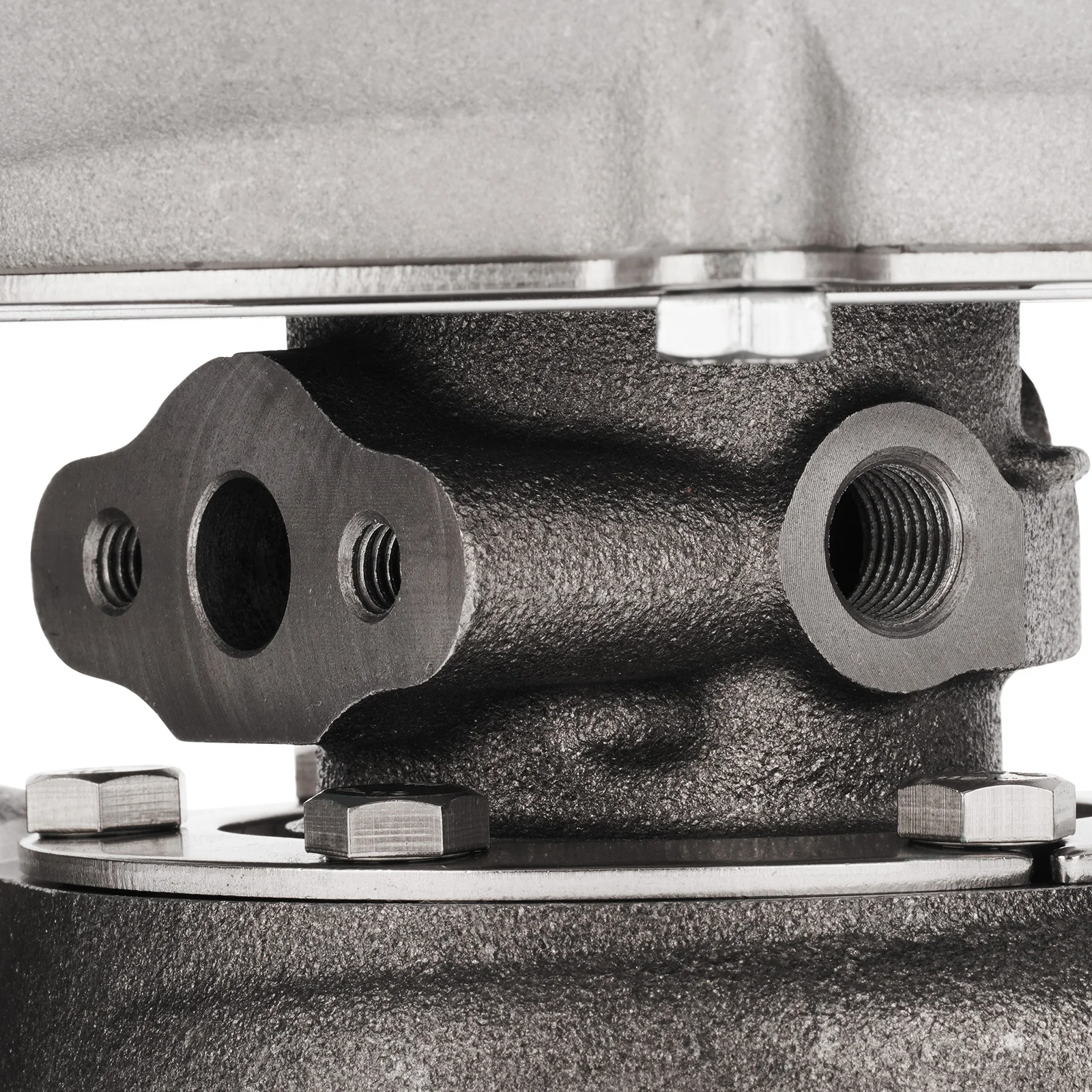

Oil feed/inlet: M10*7/16-24
Oil drian/outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

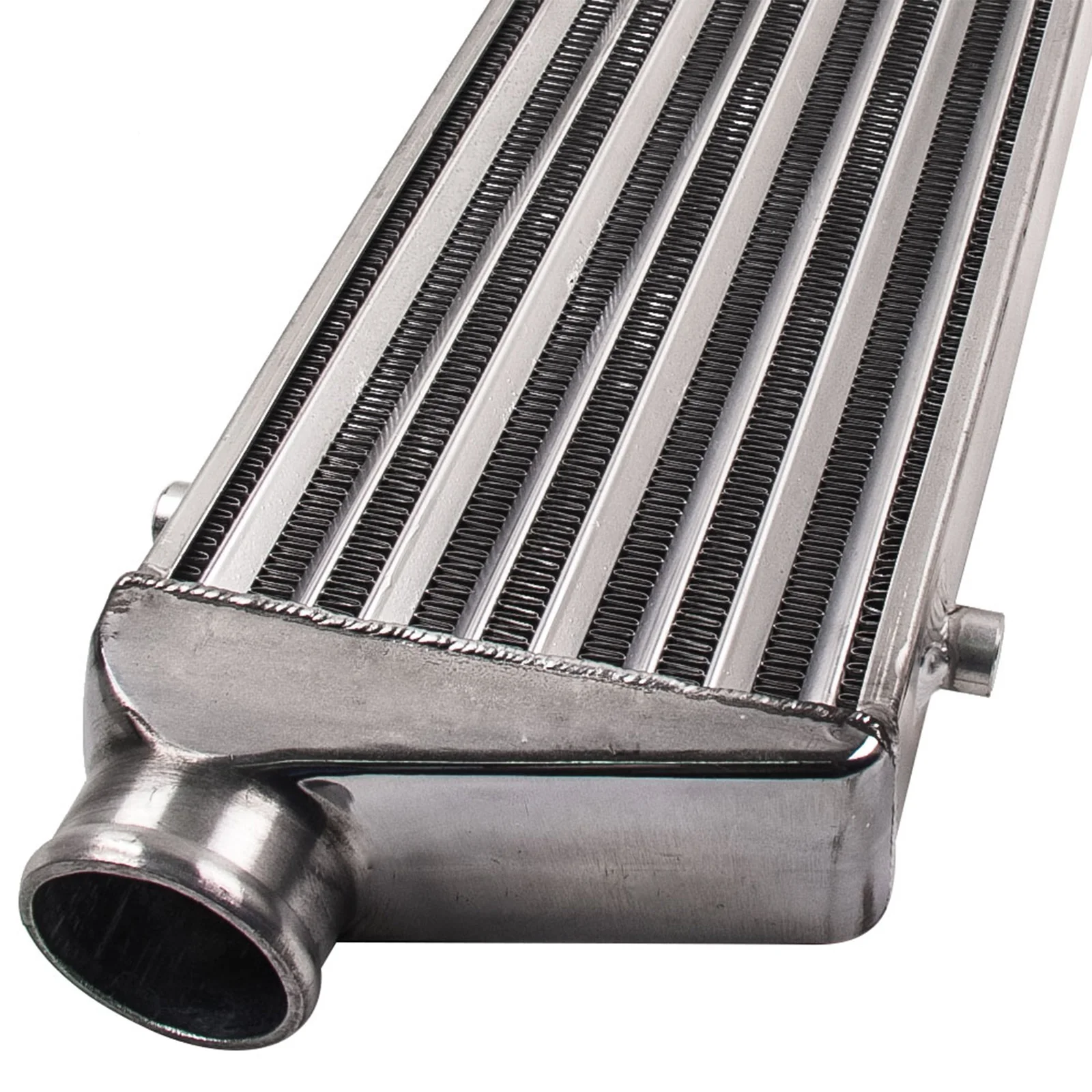

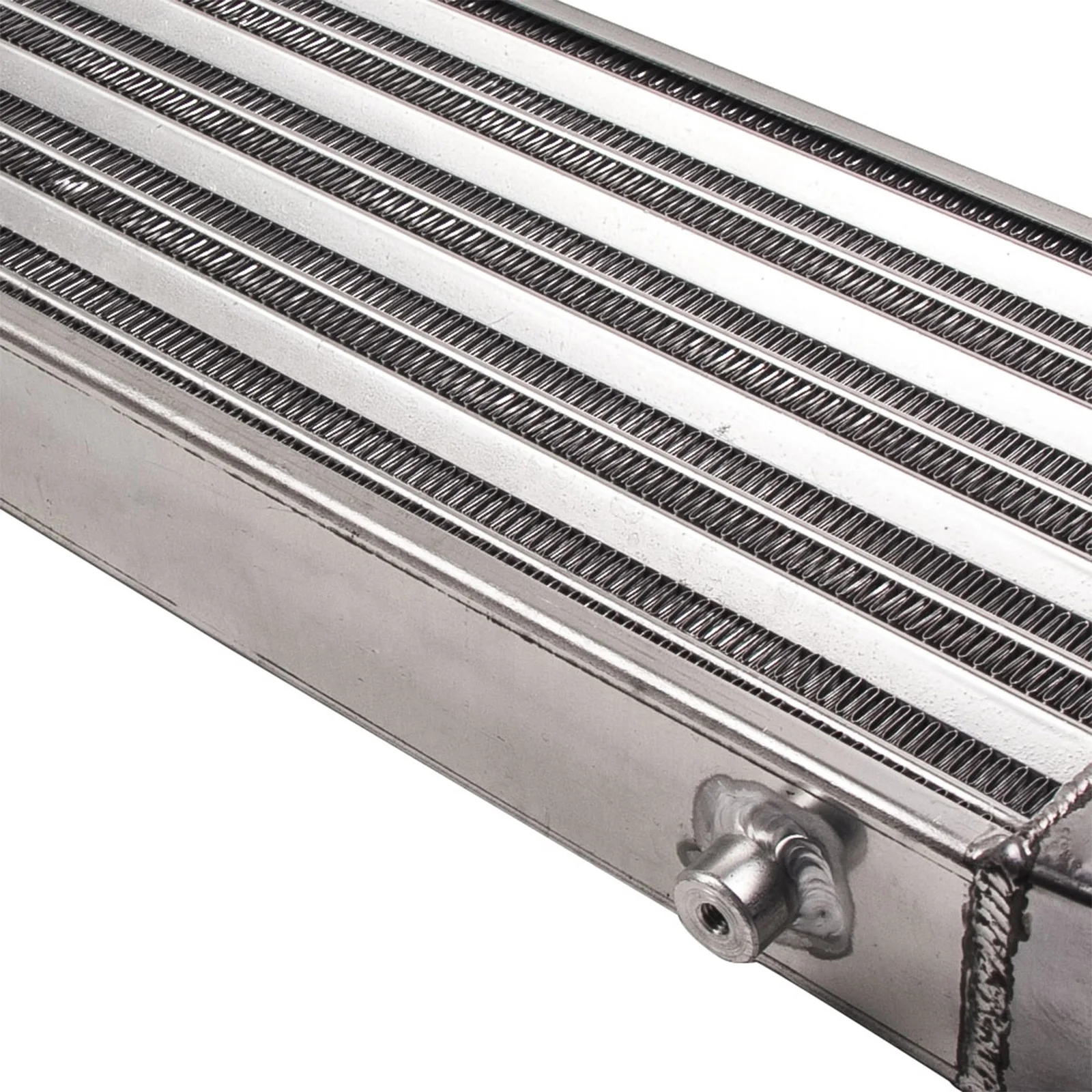

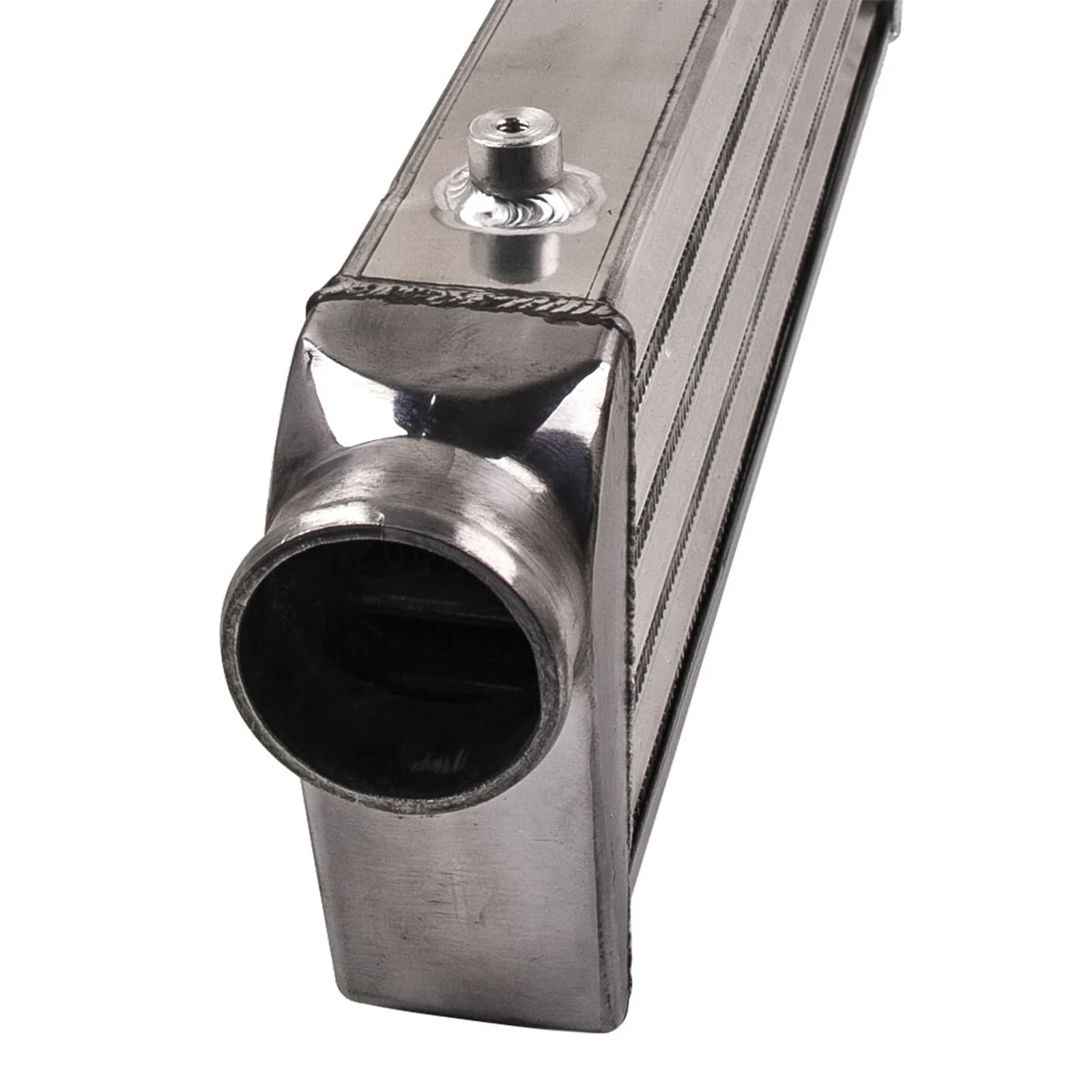

Intercooler

Size 27” x 7” x 2.5” inch. Inlet size is 2.5 inch.
Support up to 350 hp for this small intercooler size – tube and fin style .
Intercooler core size: 21*7*2.5

Universal turbo intercooler piping kit

2x 90 Degree Aluminum Pipe 2.5″

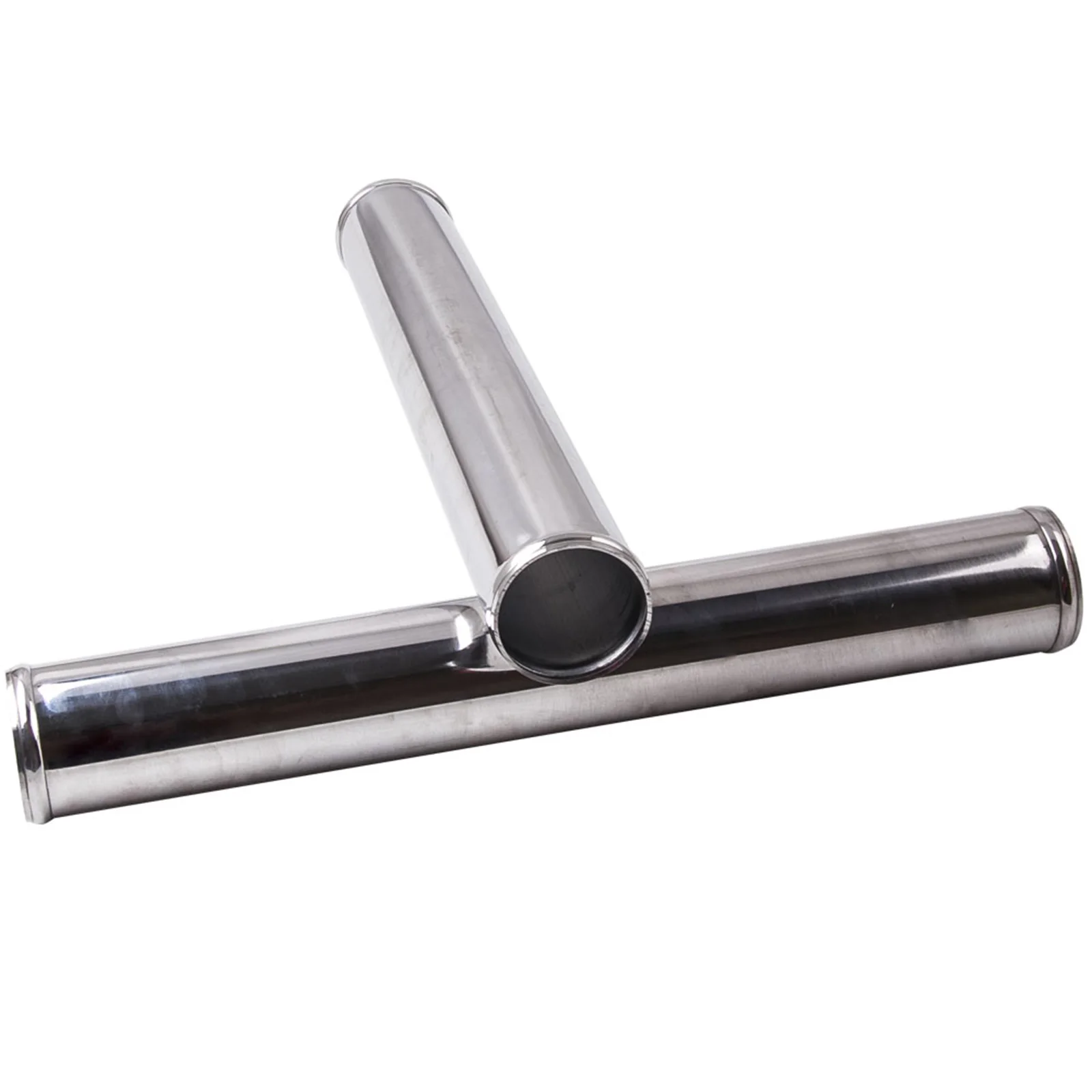

2x Straight aluminum pipe 2.5″
2x 135 Degree Aluminum Pipe×2 2.5″
2x U Aluminum Pipe×2 2.5″

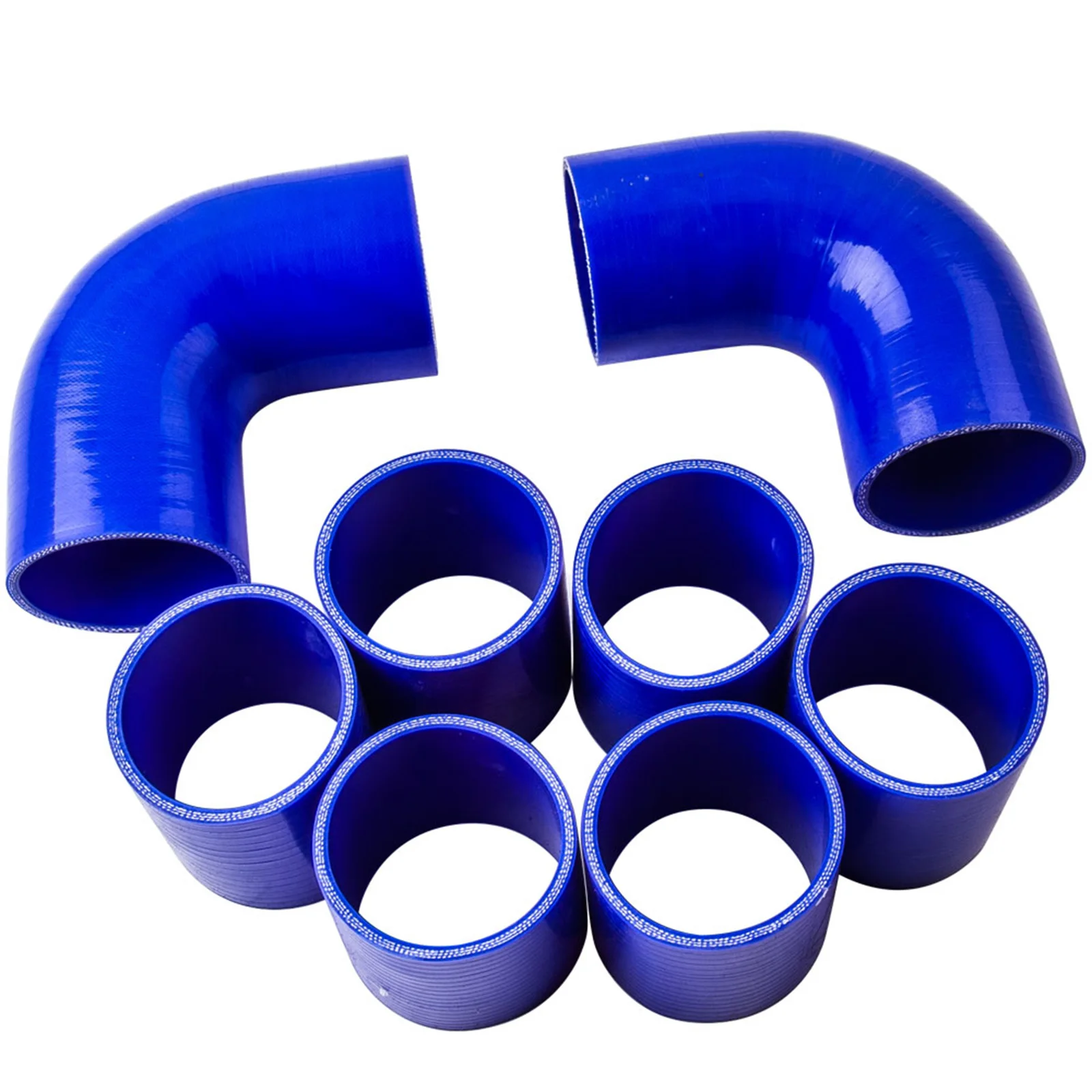

6x Straight Silicon Hose 2.5″
2x 90 Degree Silicone Hose×2 2.5″
16x Clamps 2.5

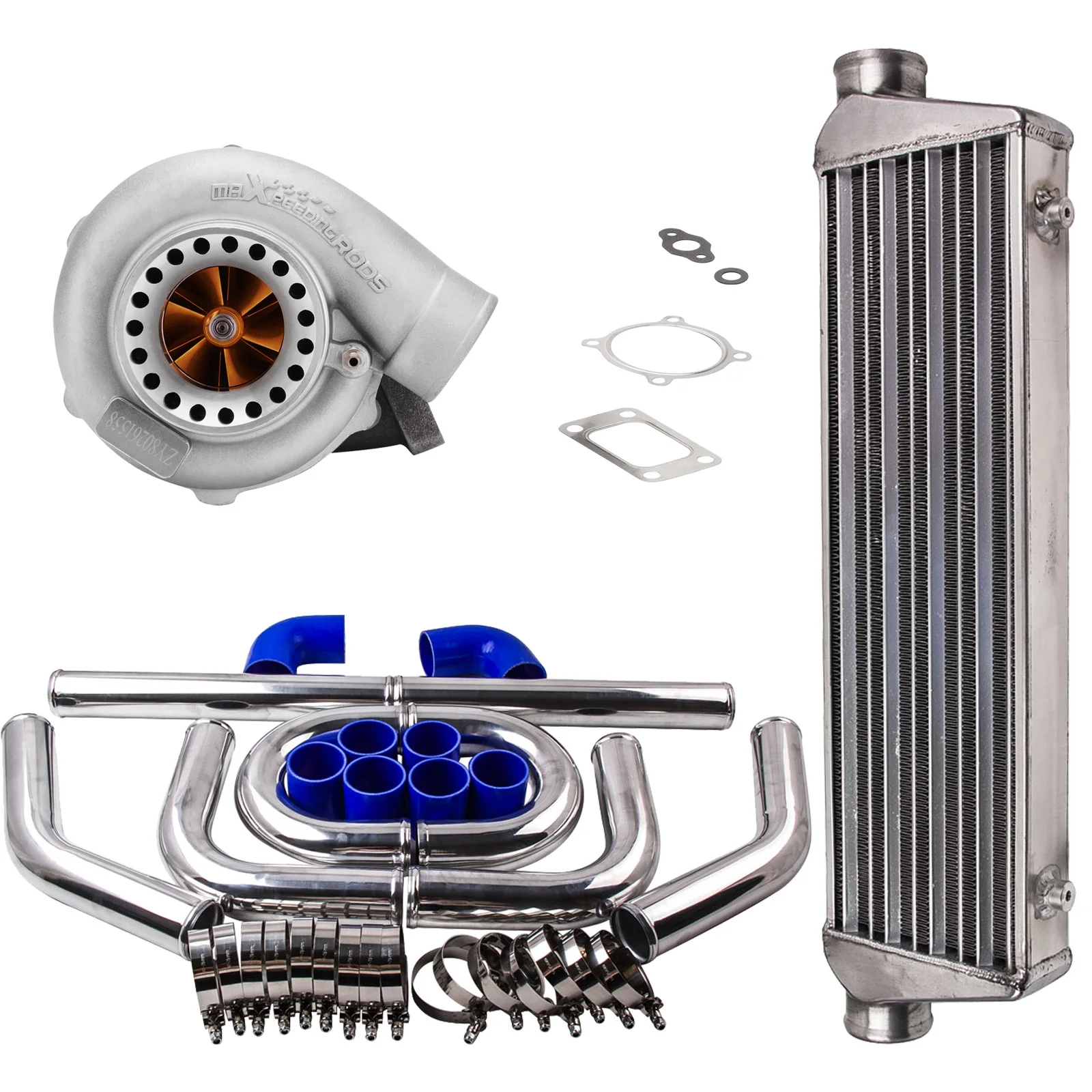

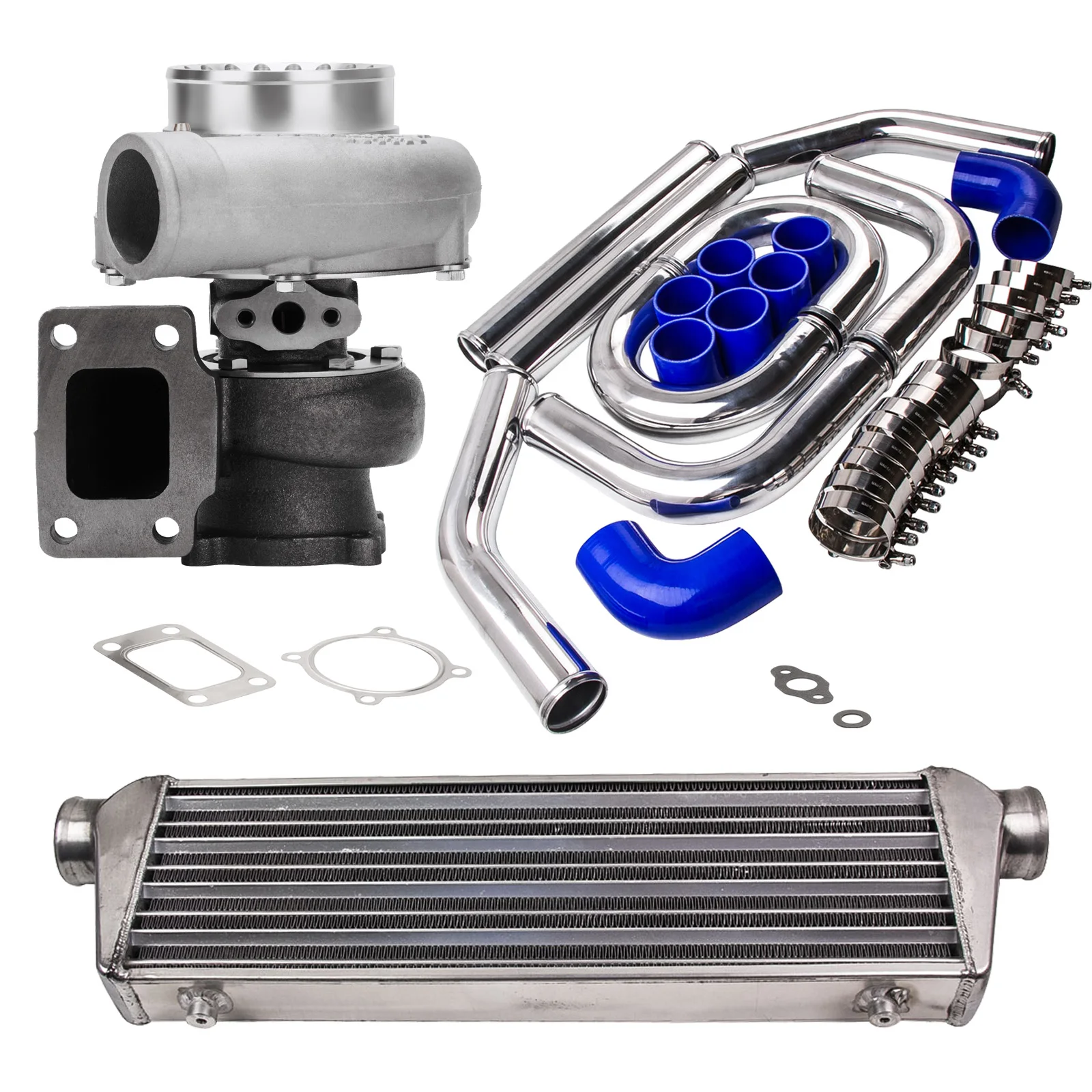

Package Include

1x Turbocharger w/ Gakets

1x Turbo Intercooler

1x Turbo Piping Kit

(You will get exactly as shown in the picture)

Feature

1. Turbine housing: Silicon-Molybdenum – High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy – High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

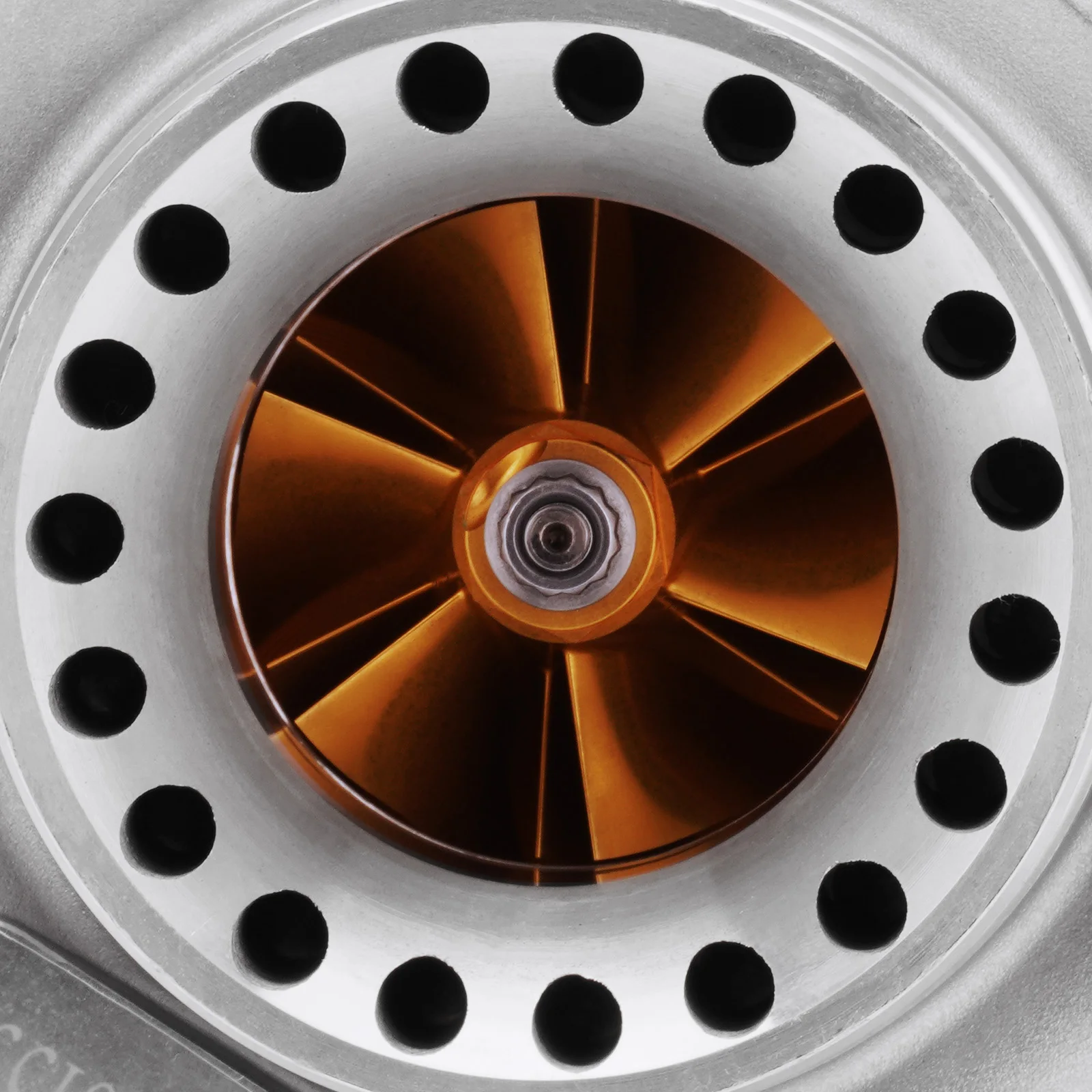

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel – High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring – Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Notice

* Replace, repair or reconnect air cleaner element per manufacturer’s manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
