RTR (without battery and charger)
Name:Werewolf
Model: H9803
Ratio: 1/10
Power: 4WD brushless
Batteries: 2S and 3S (purchase your own)
Speed: 2S/75Km+,3S/85Km+
Motor: 3652/3300KV
Servo: Digital metal teeth 15KG
Differential: Steel*2
Remote control/reception: 2.4G/5CH light control
Remote control distance: 150m+
Car size: 44cm*20cm*15cm
Box size: 59.5cm*26cm*17.5cm
Chassis height above ground: 10~20mm
Wheel (diameter/width): 65/25(F)mm,65/30(R)mm

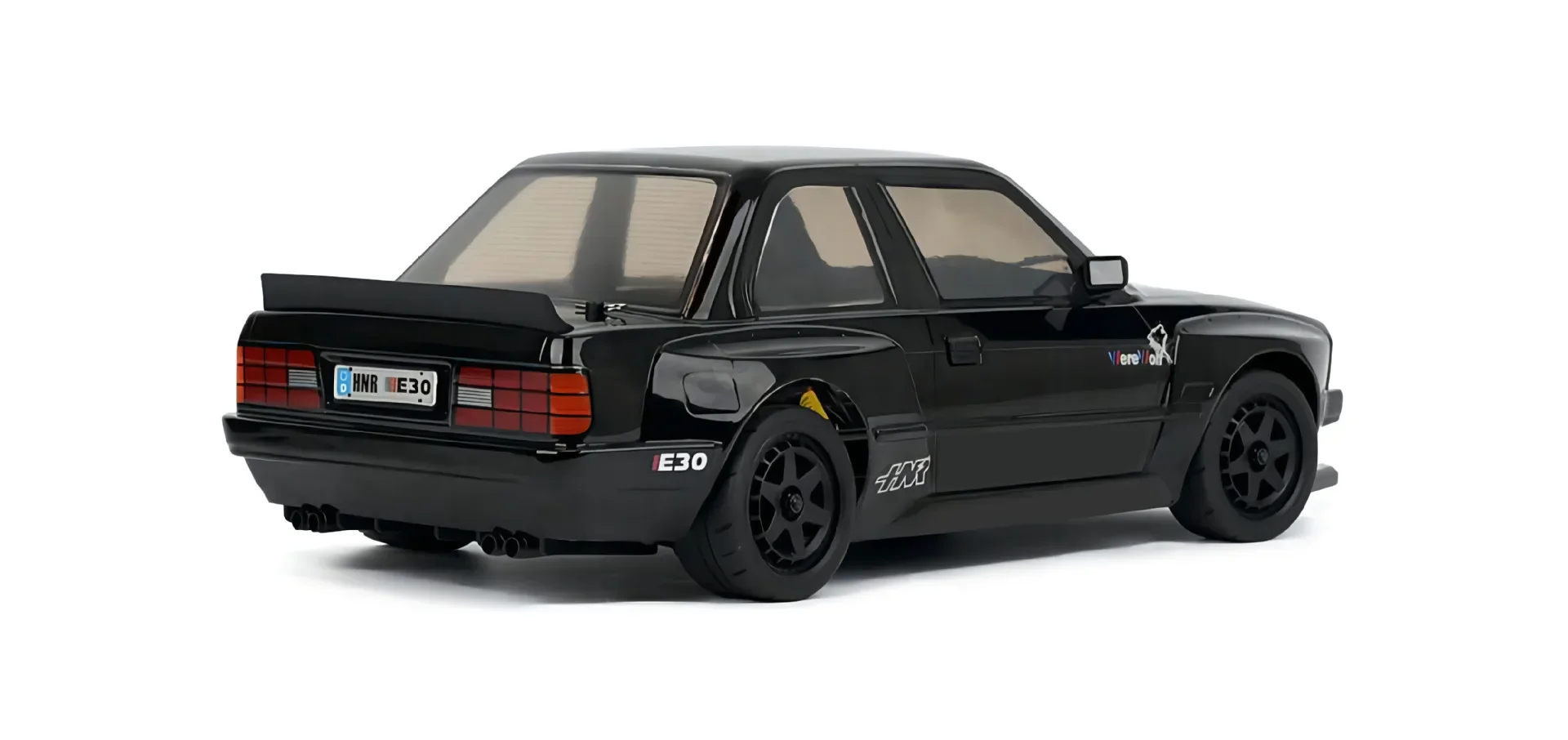

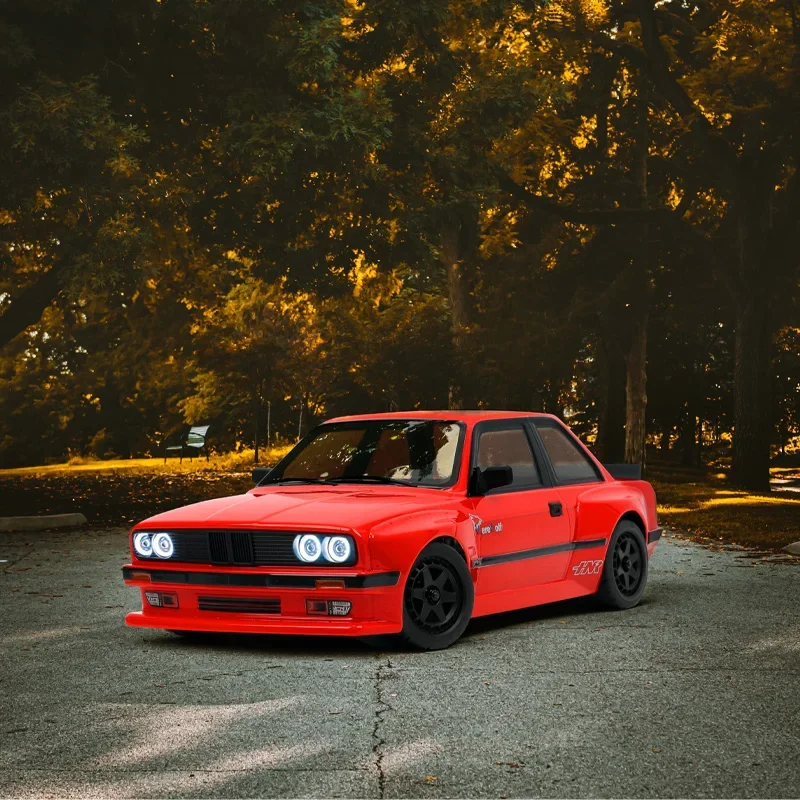

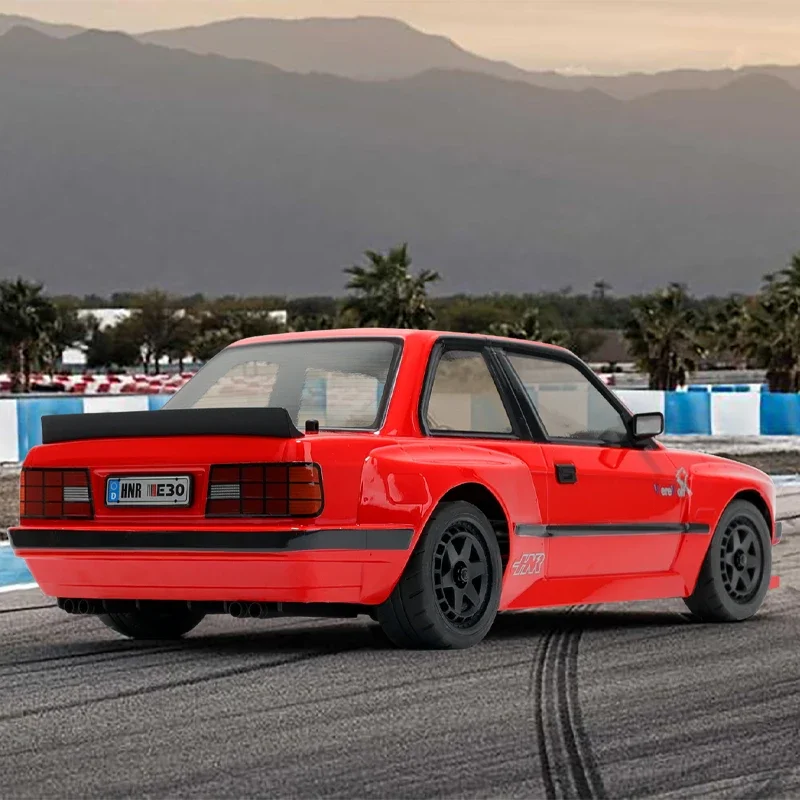

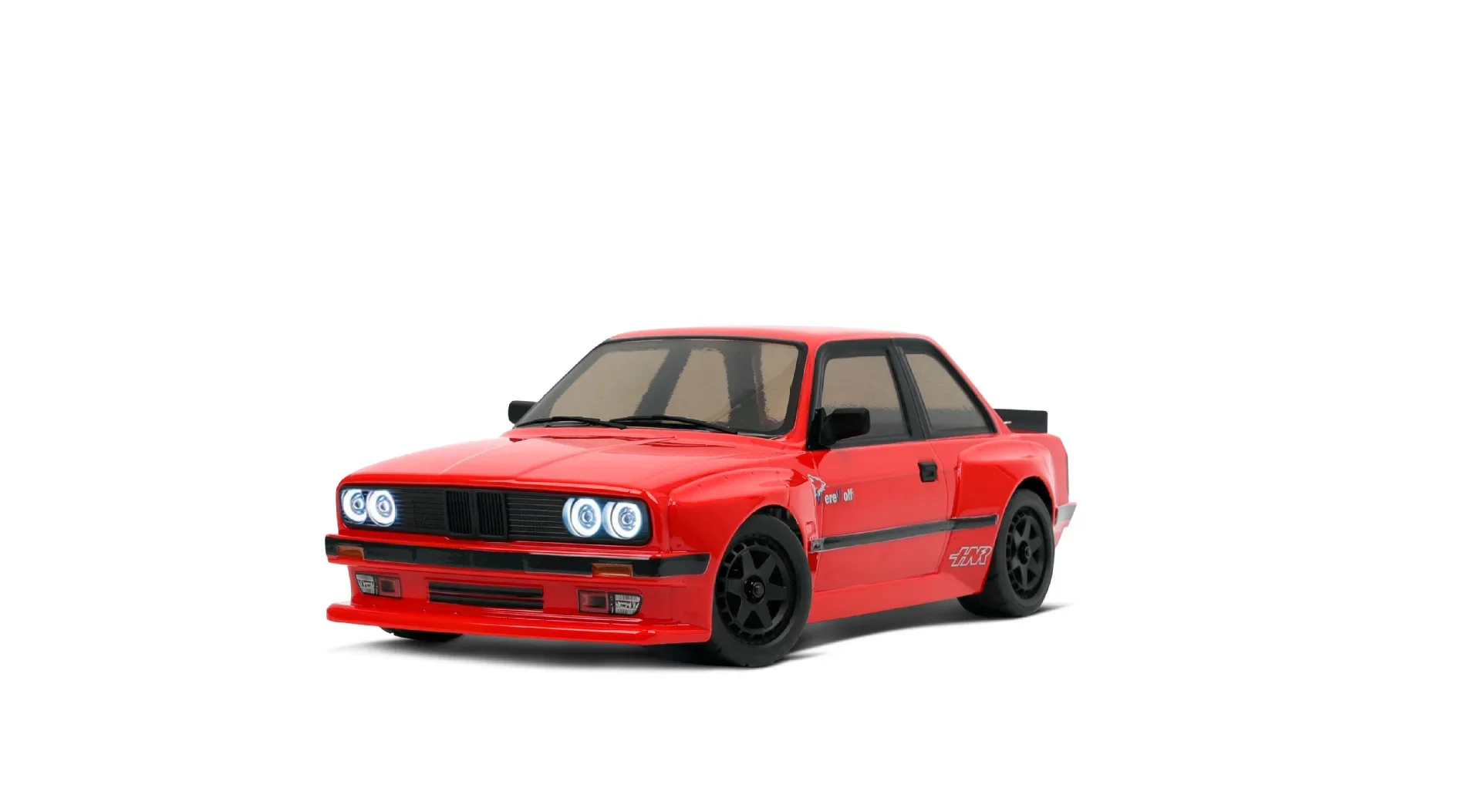

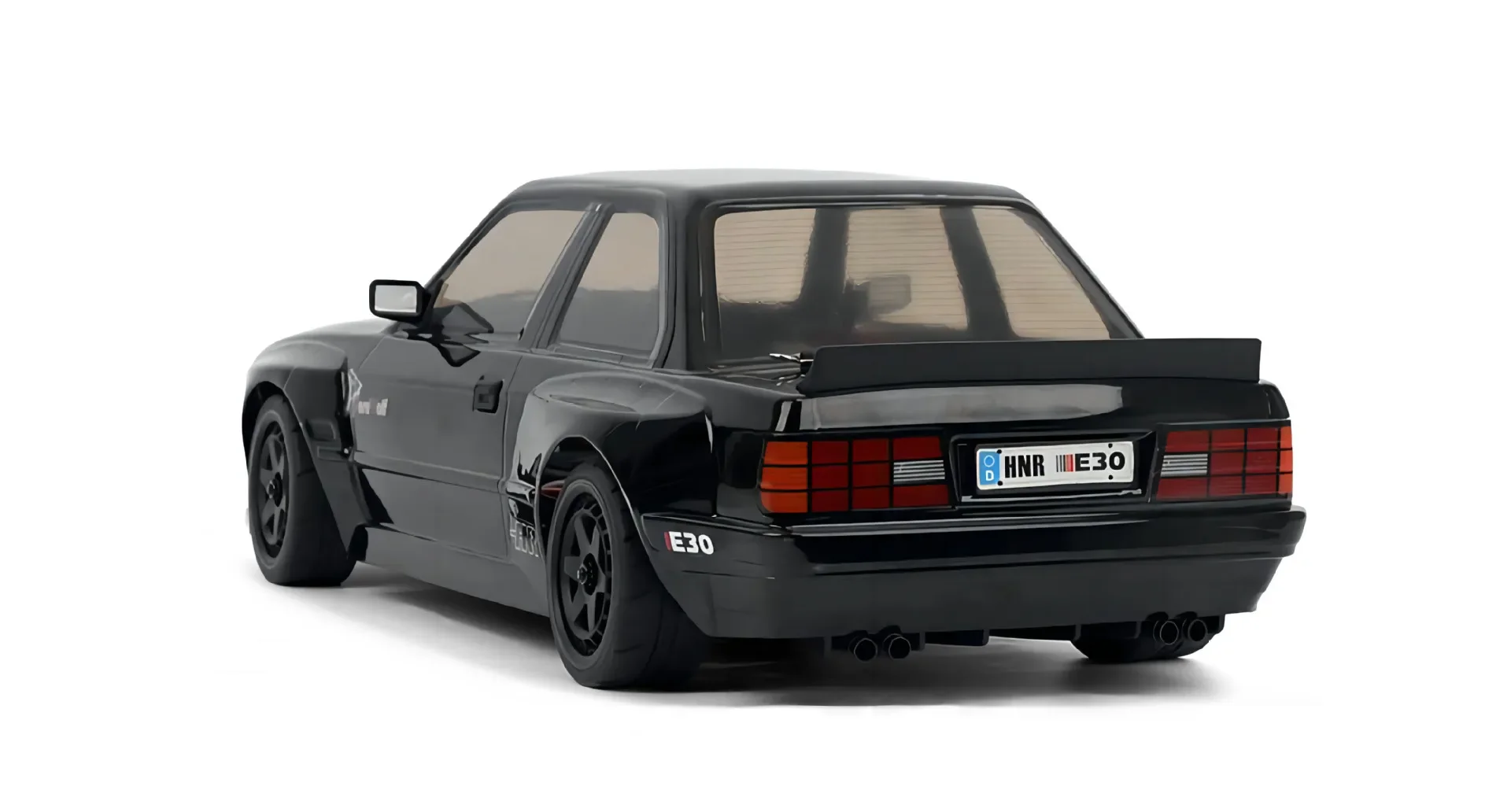

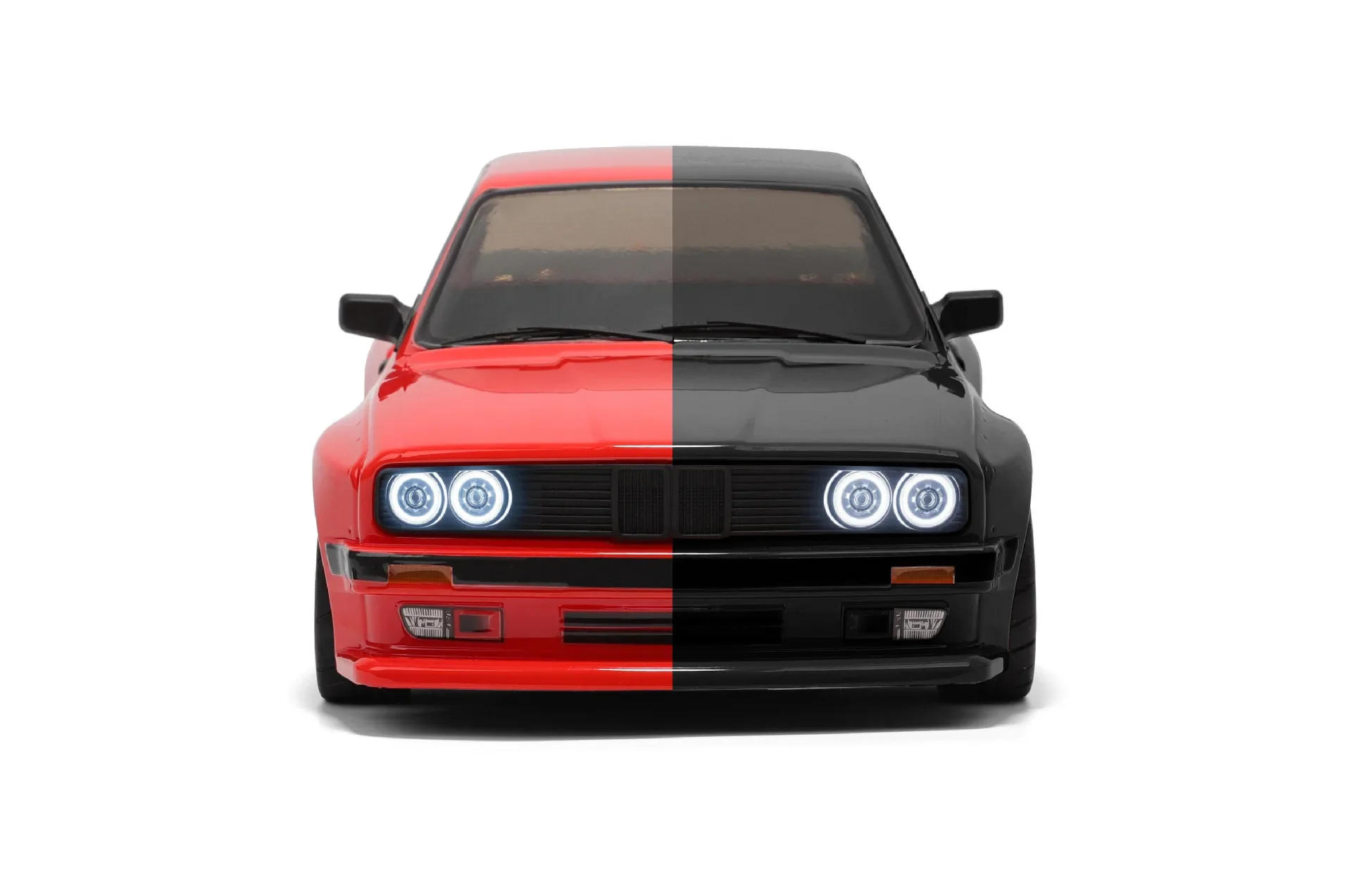

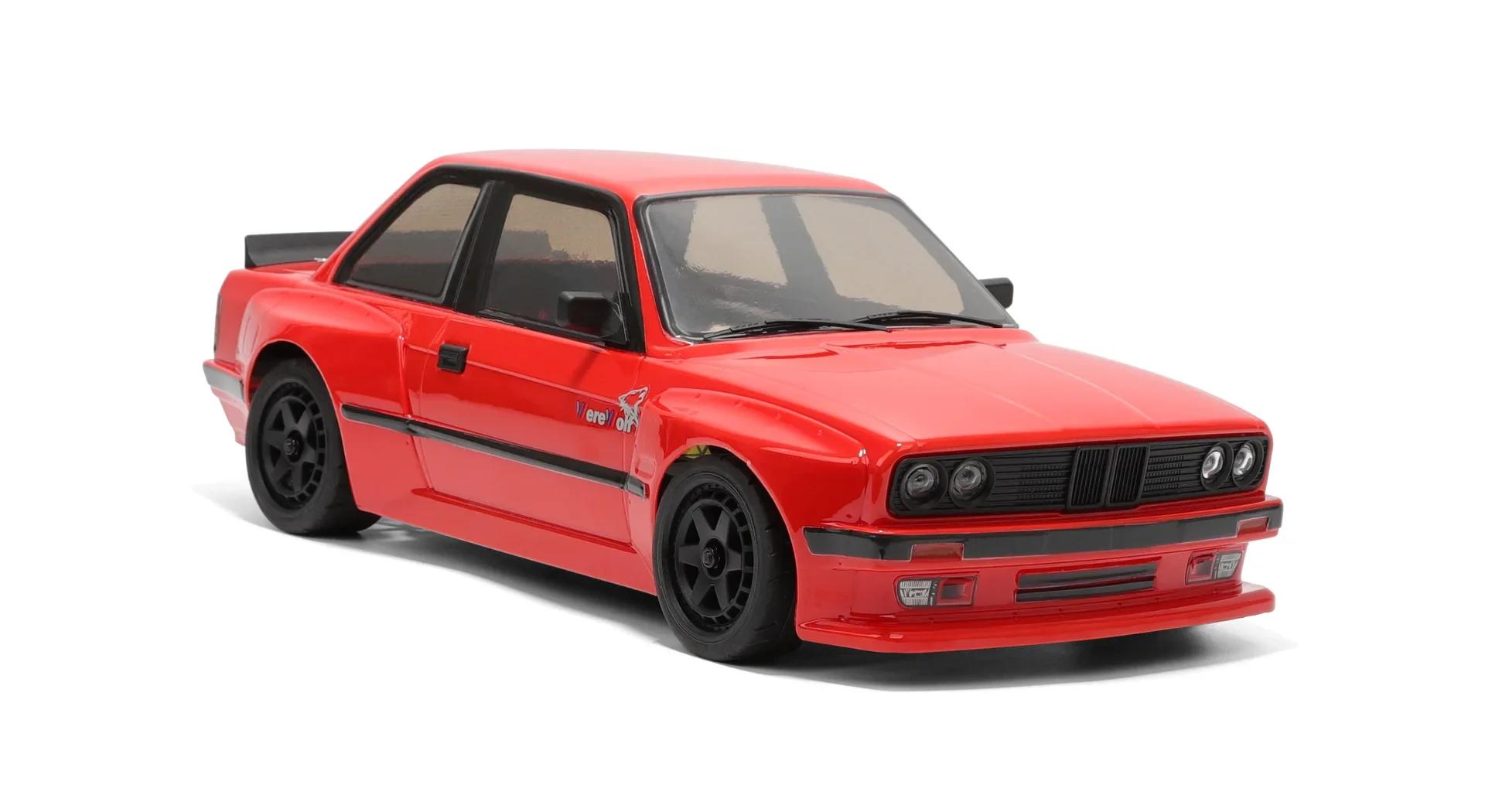

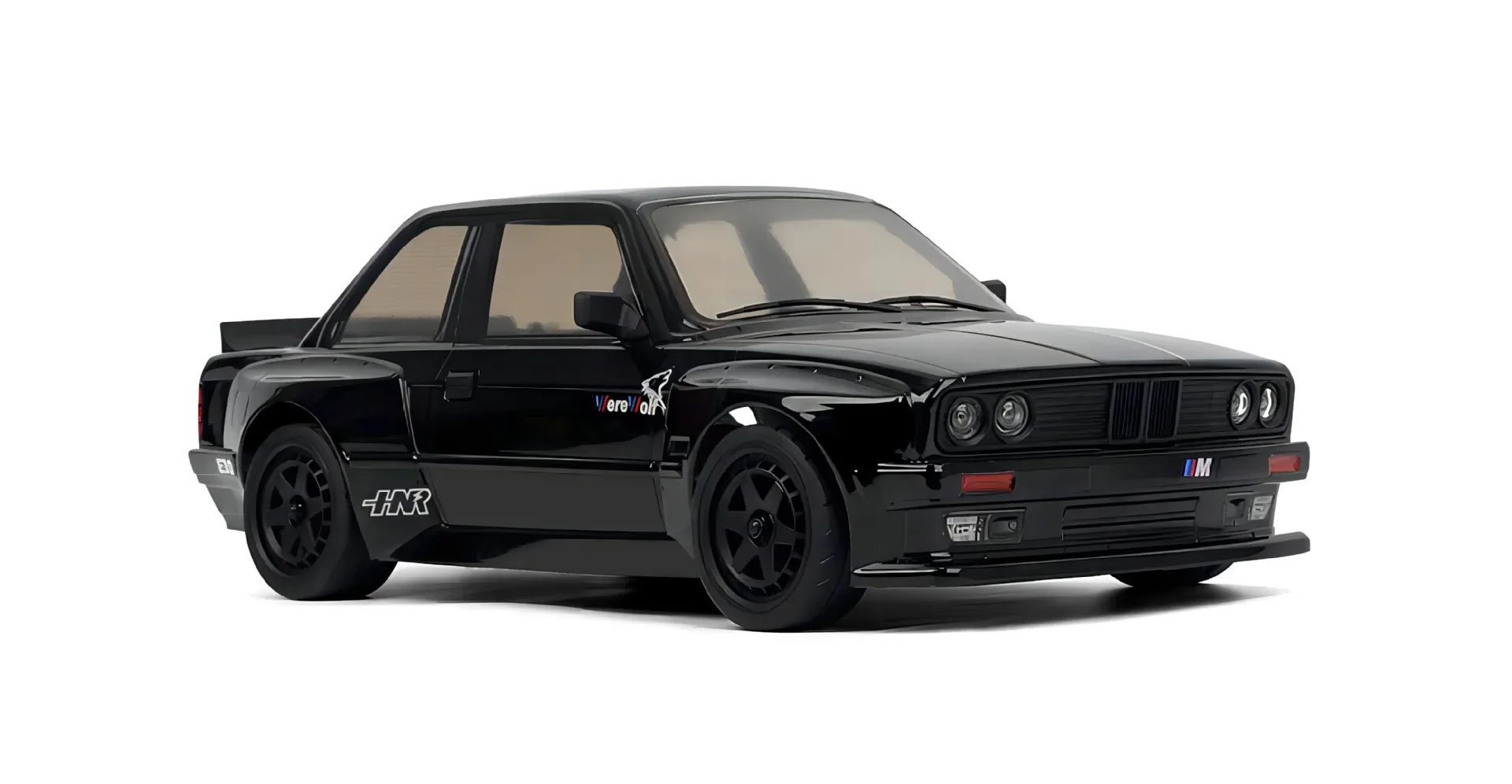

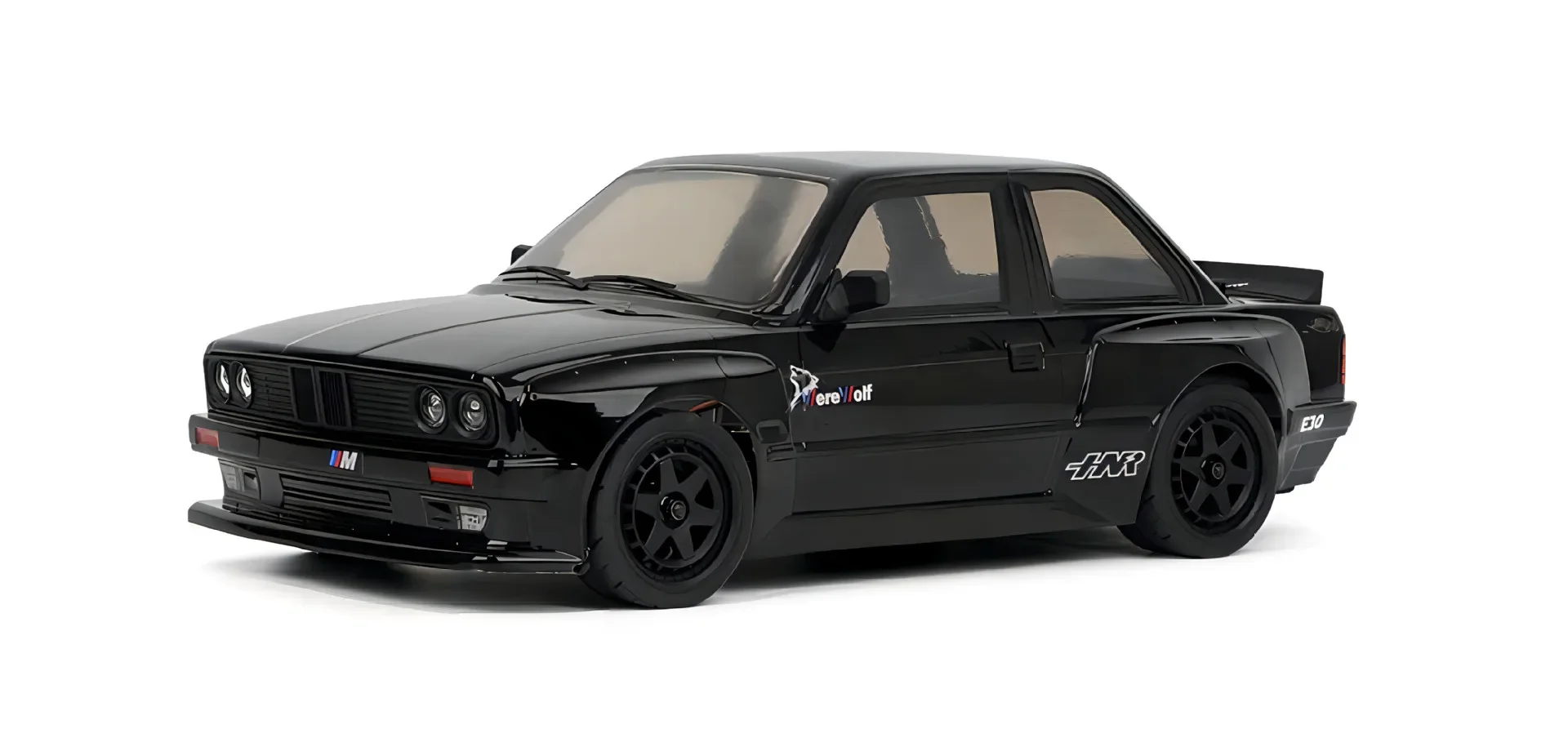

HNR has launched a new 1/10 brushless power couper, codenamed “WEREWOLF”. The exterior adopts a simulated body with an air intake grille, and a simulated linkage LED light cluster. High-grip racing tires are standard from the factory, and a drift tire is included. It can realize two kinds of gameplay: racing and drifting. The electronic power system adopts Hobbywing 60A brushless ESC and 3652 3300KV brushless motor. It can use 2S~3S lithium battery, equipped with DVC (gyroscope) 5-channel light control receiver and 2.4G remote control. The DVC function improves the car’s handling at high speeds. This model has a retro styling with a sporty wide-body surround. It must be a product worth playing with RC enthusiasts. Car model: H9803, 90% RTR shipped (excluding battery and charger).
Feature Description:

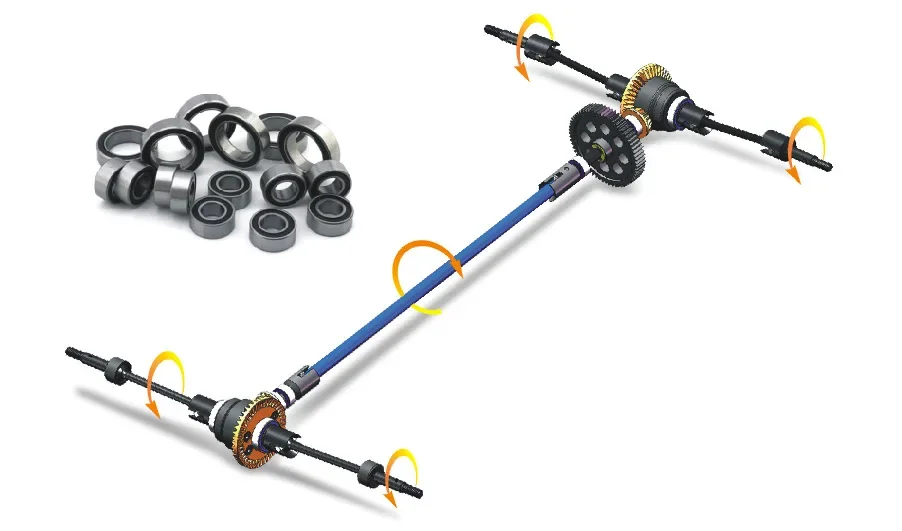

Gear Drive System
*Full Perrin bearing configuration, front and rear differential boxes with metal steel teeth, anti-oil leakage seal design.

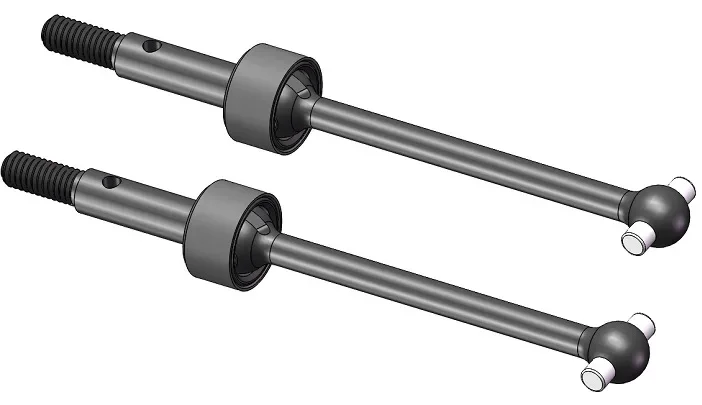

*5.8mm aluminum central metal driveshaft, #1144 high carbon steel front and rear driveshafts, front driveshaft with CVD structure design.

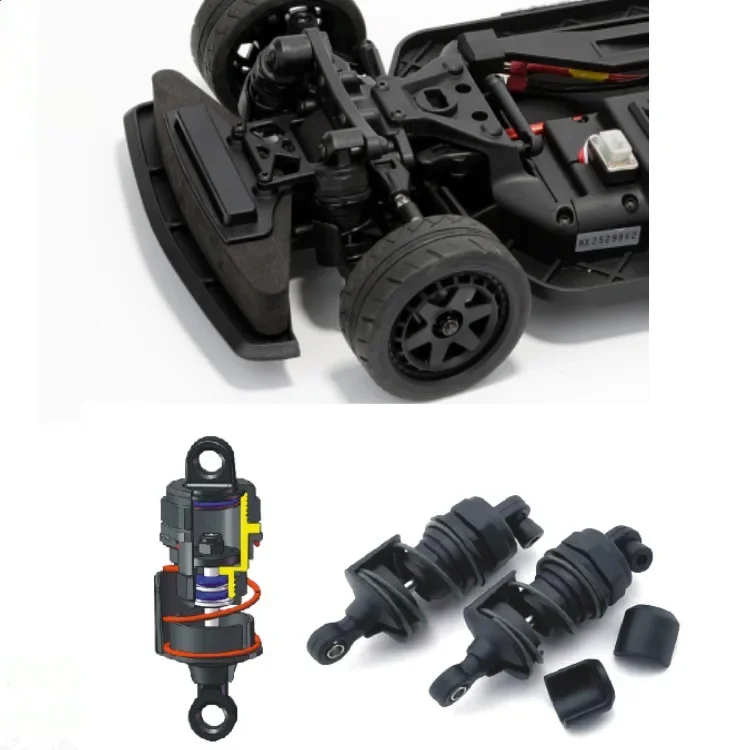

Suspension shock system
* Adjustable oil-containing suspension shock system;
* With shock spring anti-dislodgement, fender, shock ball head protection cover design;
* 3.0MM hardened shock shaft center comes with high density shock oil.

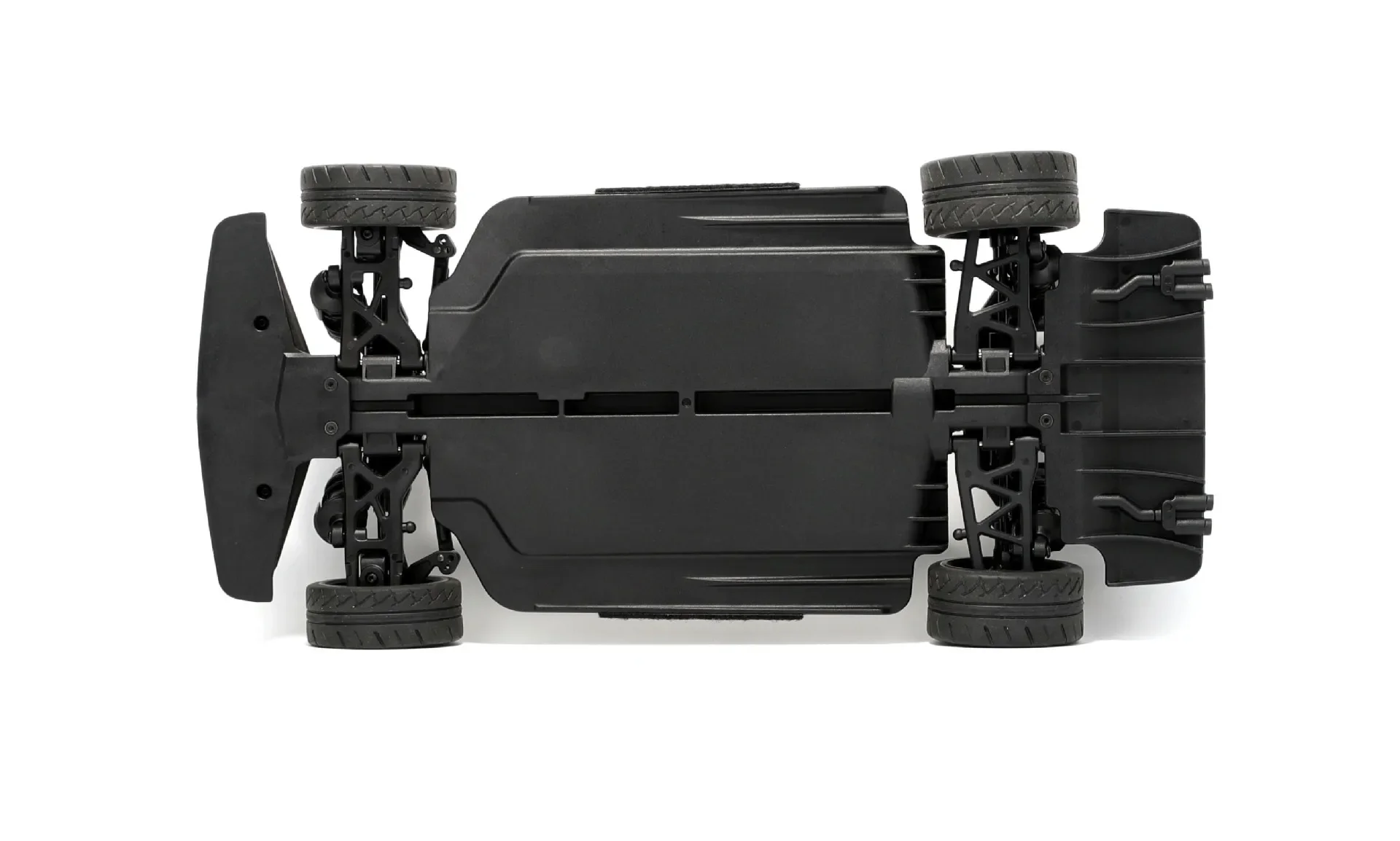

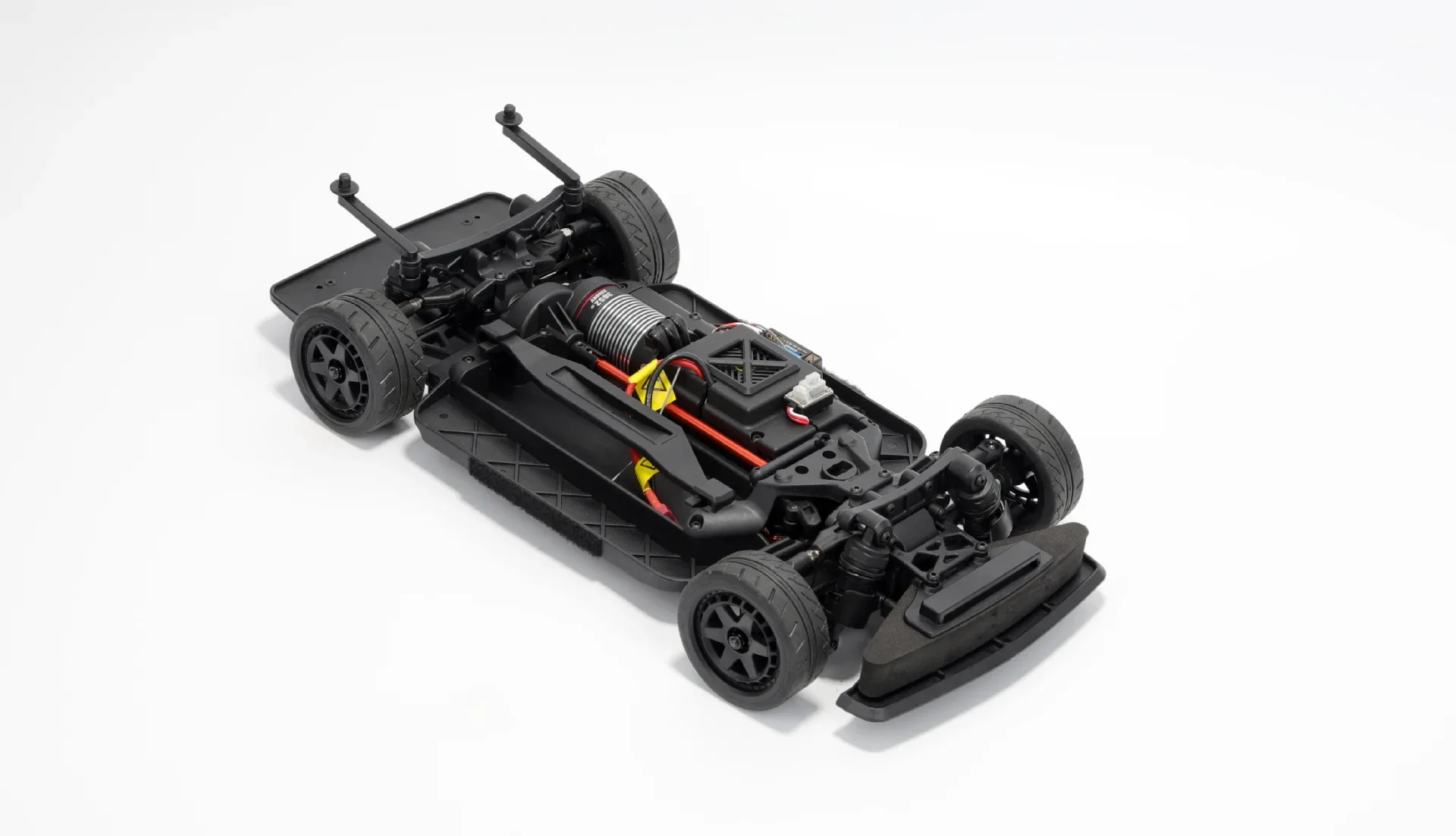

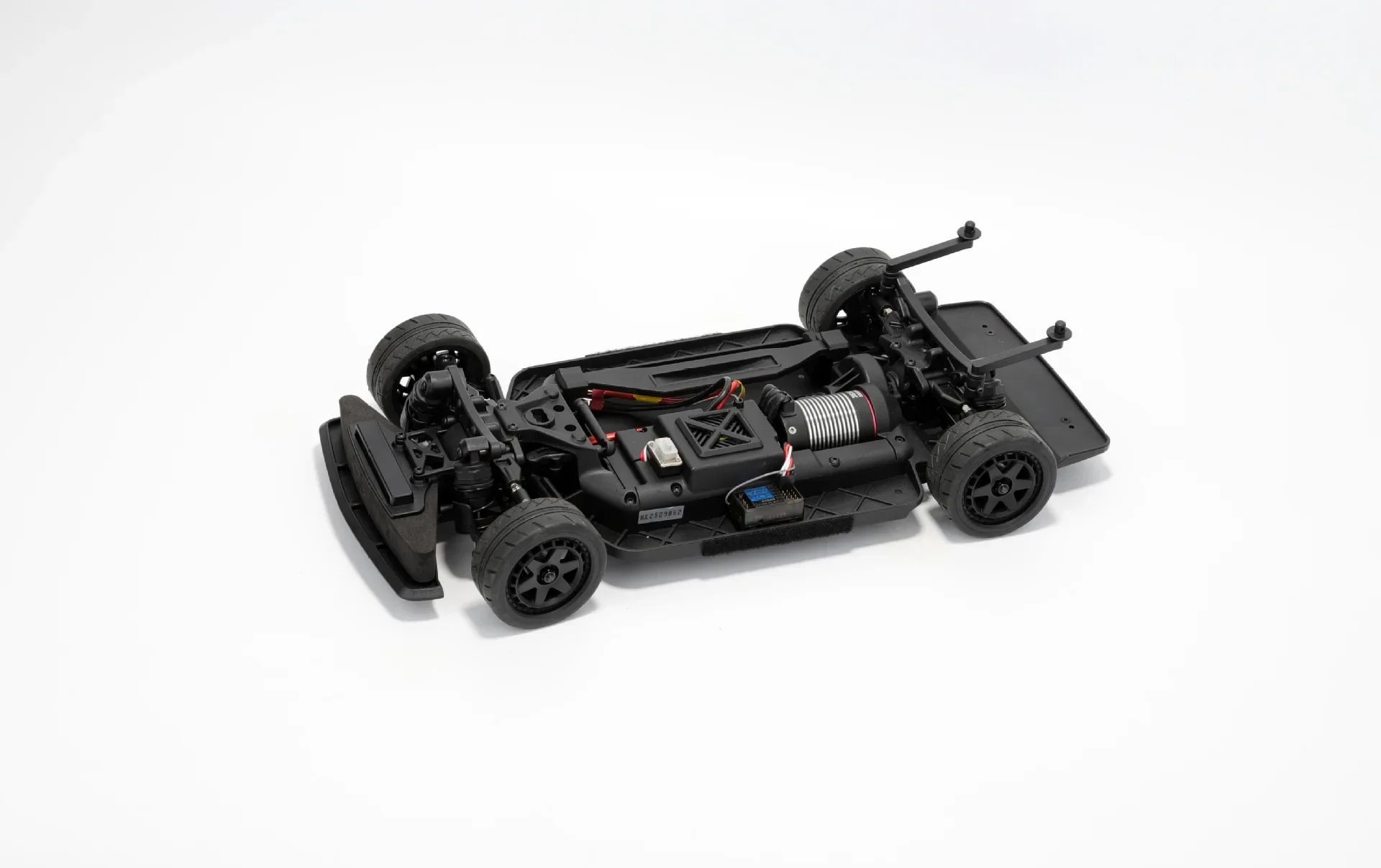

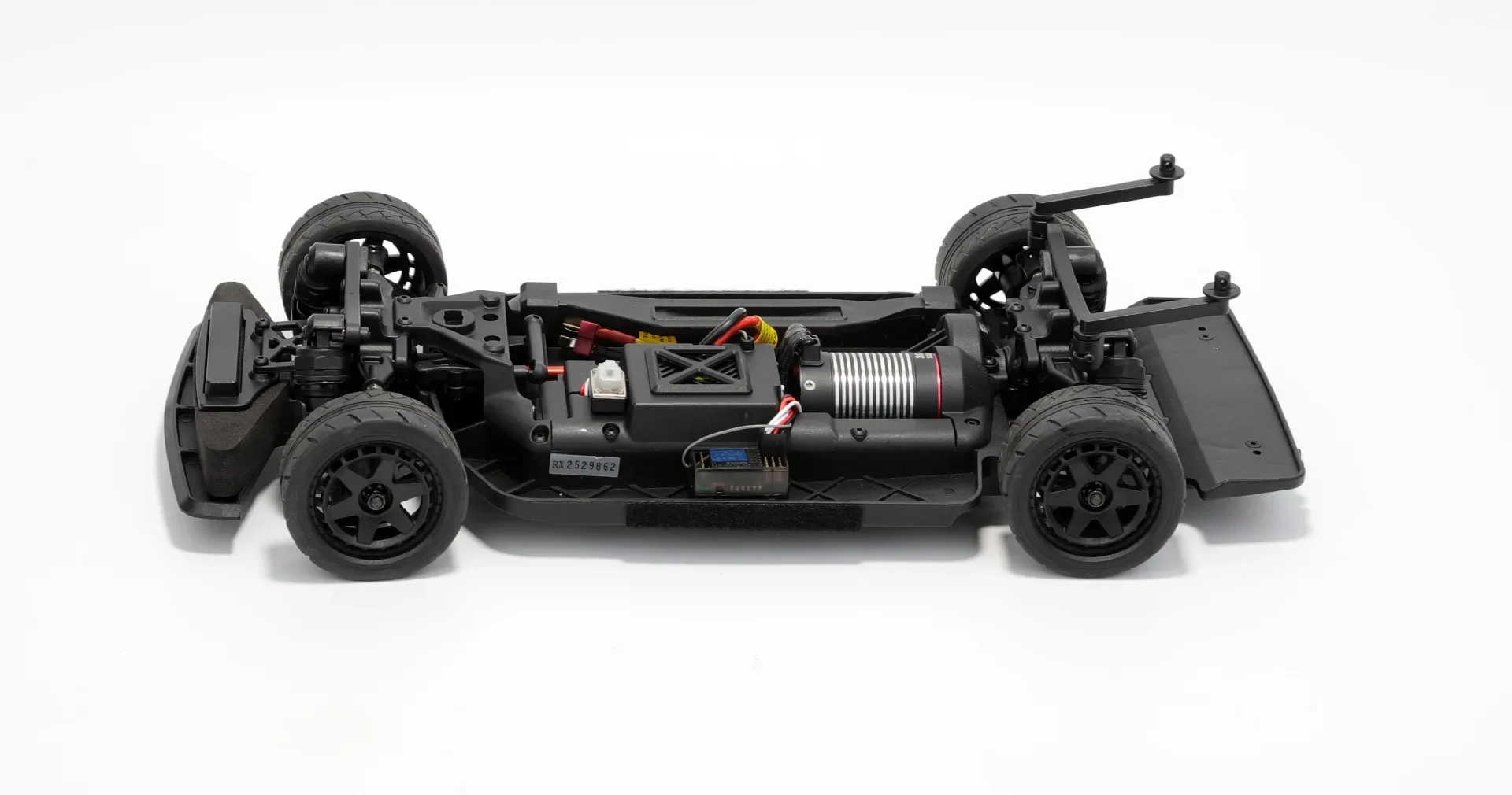

*. The wider version of the screwless chassis design, the appearance looks simple and beautiful, the effect of sand and dust prevention and stability will be better.

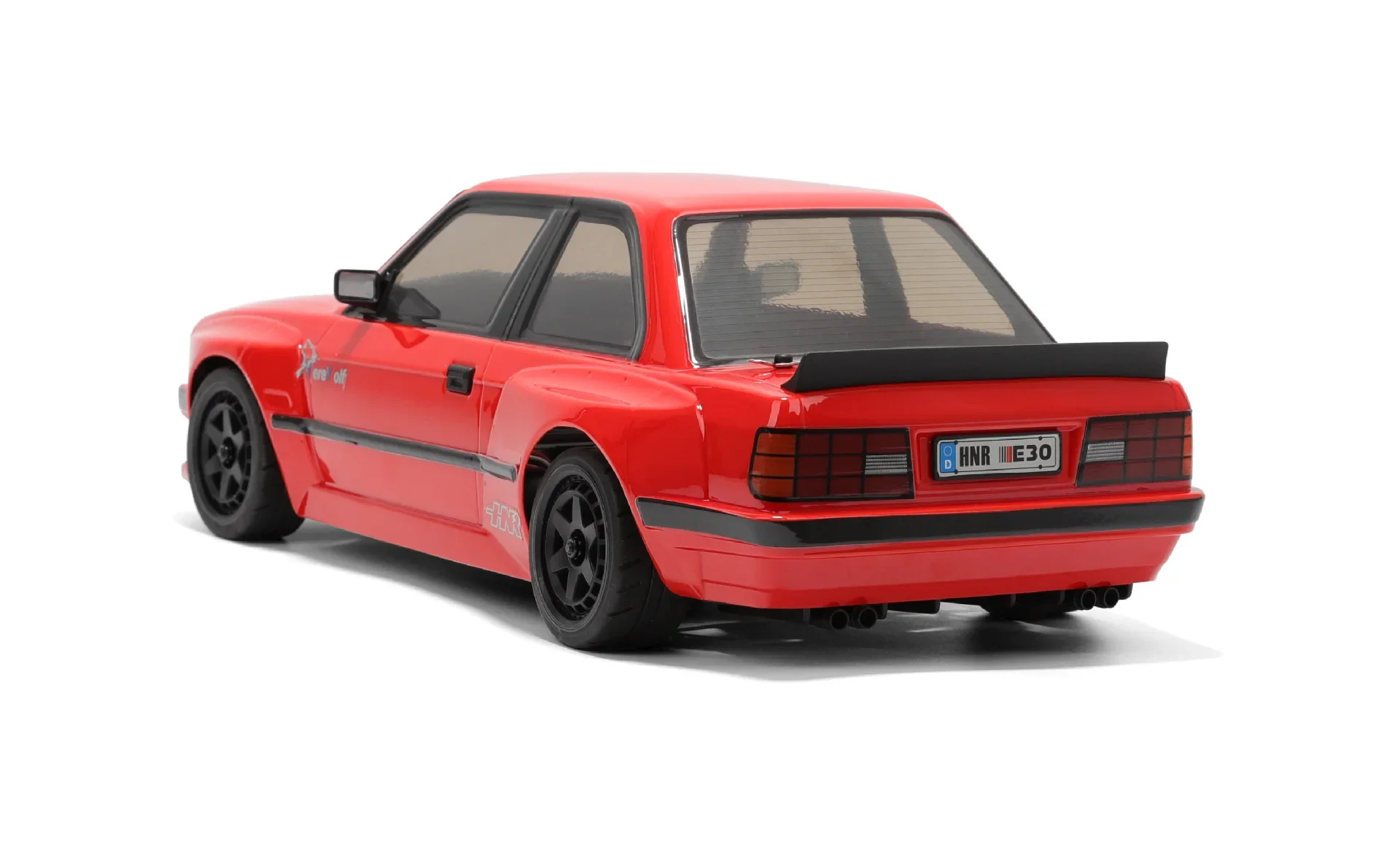

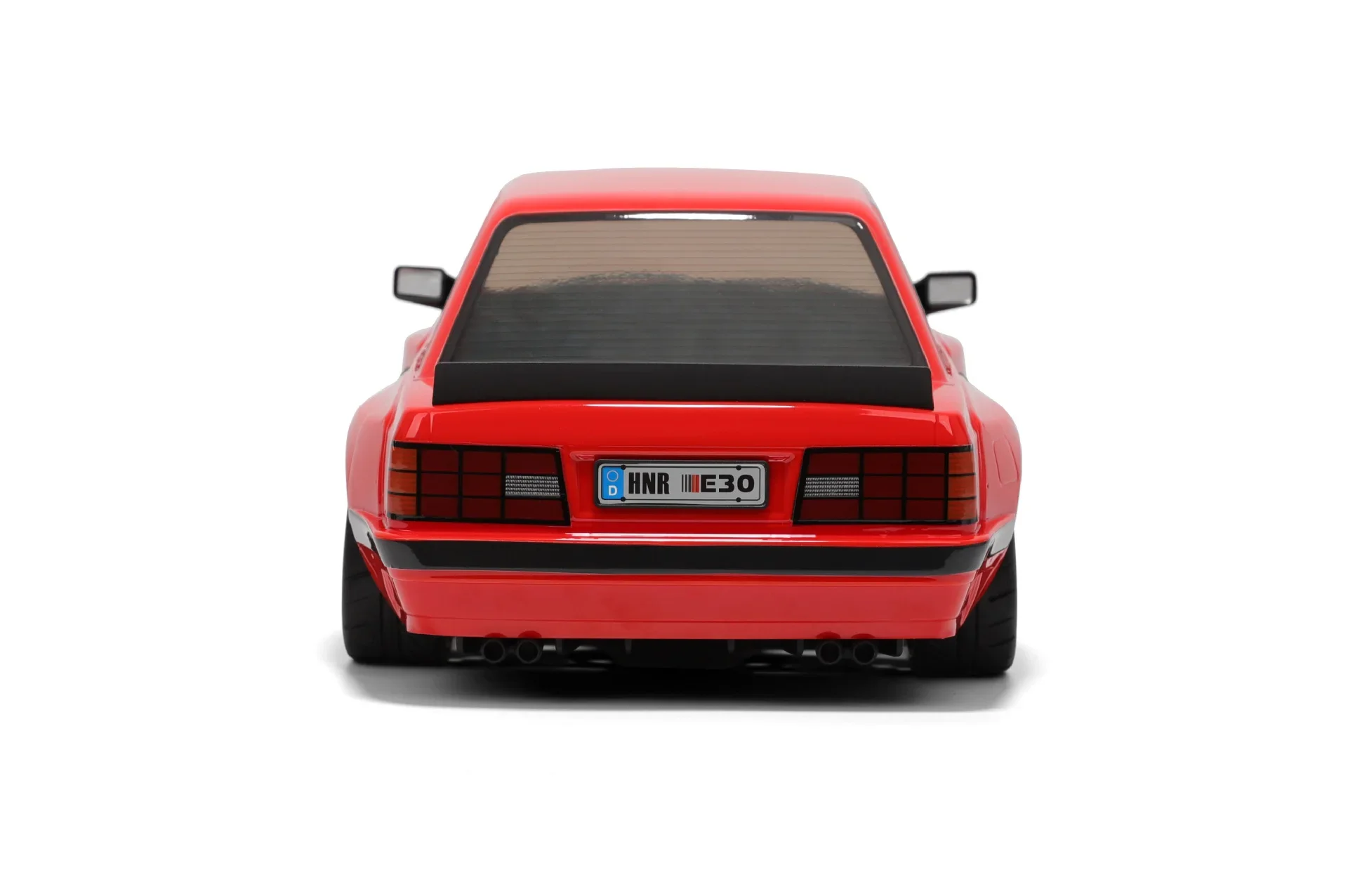

*. The rear bumper adopts the deflector plate modeling design, in addition to increase the appearance of dynamic, but also effectively reduce the air resistance generated by the race car at high speeds, so that the race car is more closely to the road surface and thus improve driving performance; * the front of the car shell using invisible inverted buckle fixing method, simulation and beautiful

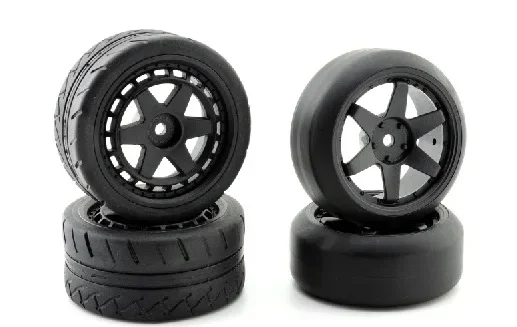

*.Different width front and rear wheel design;
The front narrow wheels are conducive to the car’s sensitive steering, and the rear wide wheels are conducive to the car’s smooth heel during high-speed driving;
High-density rubber tires, lined with sponge made of EVA material, tread with anti-slip and drainage design.

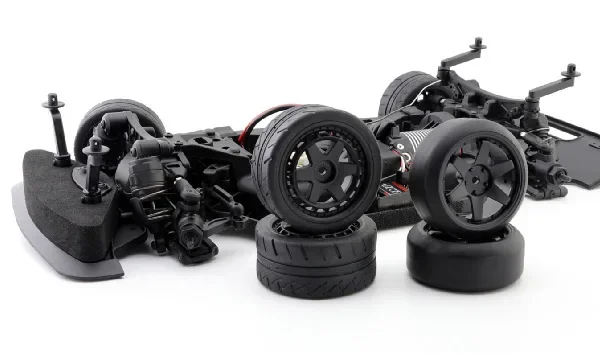

*The original factory comes standard with a set of drift tires to achieve both racing and drifting.


The upper swing arm can be adjusted with steel tie rod;

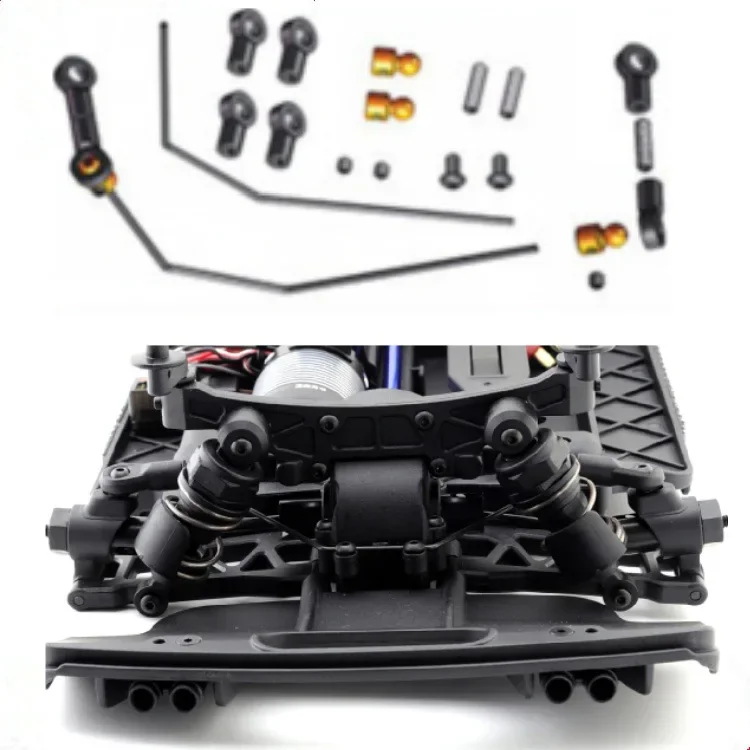

*. Front and rear anti-roll bar design (with straps, need to be assembled by the player)

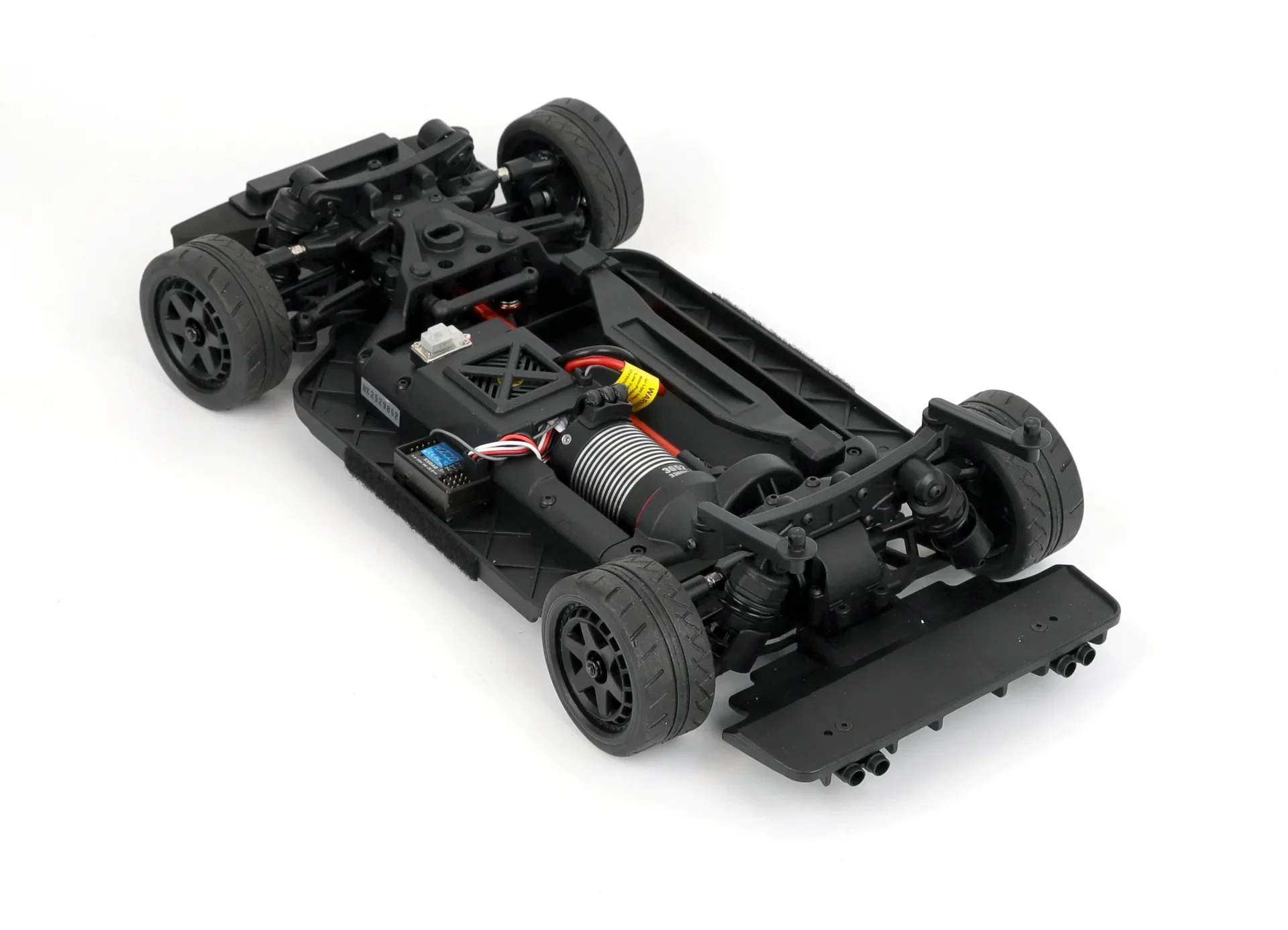

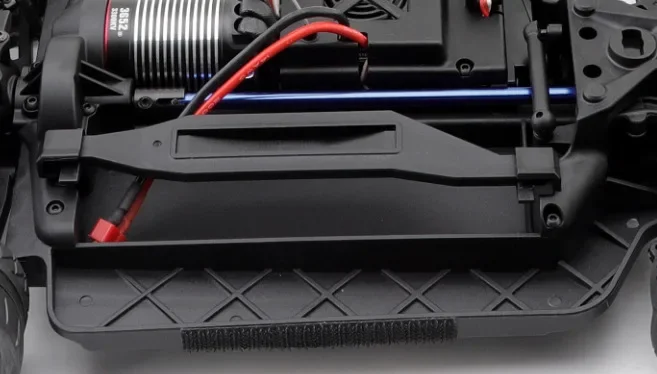

*.Right battery arrangement, larger space capacity;
Quick-release mechanical principle, battery tablet design.
Shipment is not equipped with battery, the battery specification requires 2S~3S, and the maximum volume size is 145*50*25 (height) mm.

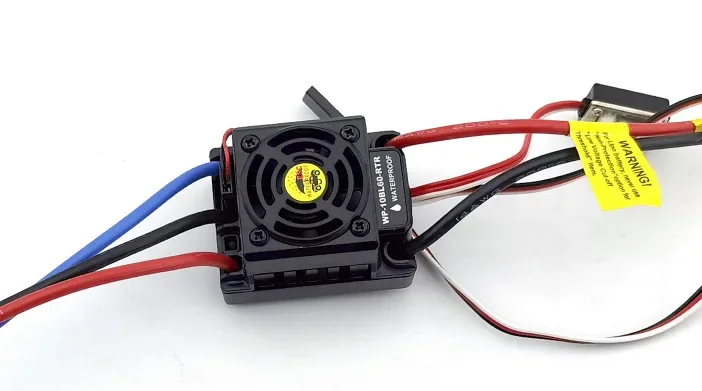

Hobbywing “WP-10BL60-RTR” ESC
Support non-inductive brushless motor and sensored brushless motor;
Excellent waterproof and dustproof performance with independent fan;
Support 6V and 7.4V switching, easy to drive a variety of powerful servos,
The instantaneous current can reach 15A;
*.With battery low voltage protection, over-temperature protection, throttle runaway protection and other functional protection;

Hobbywing 3652/3300KV brushless motor
*. Better motor linearity and stable rotor magnetism;
*. 6061-T6 aluminum alloy housing, case temperature support up to 100 C (212 F);

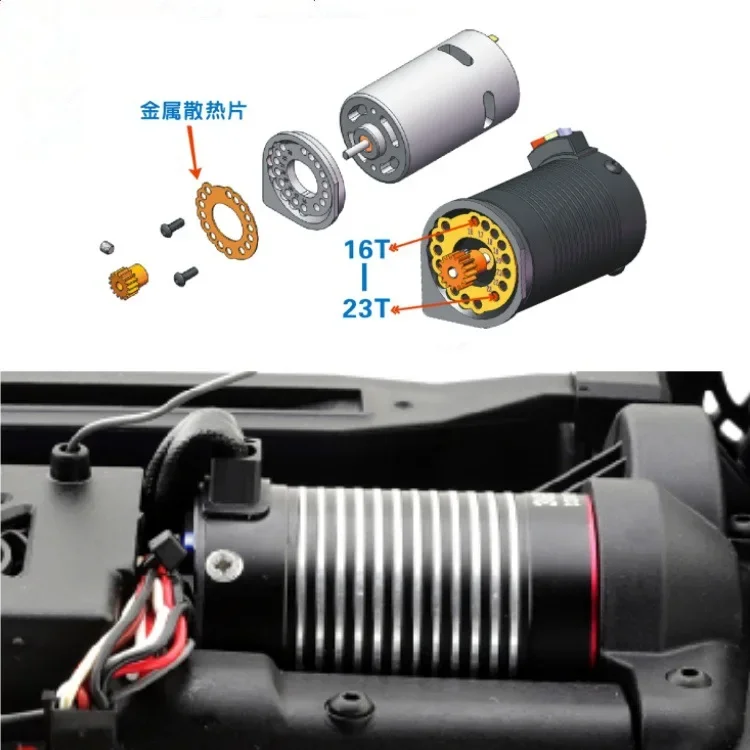

*. The motor base is inlaid with metal heat sink, which supports 23T-29T motor tooth design;

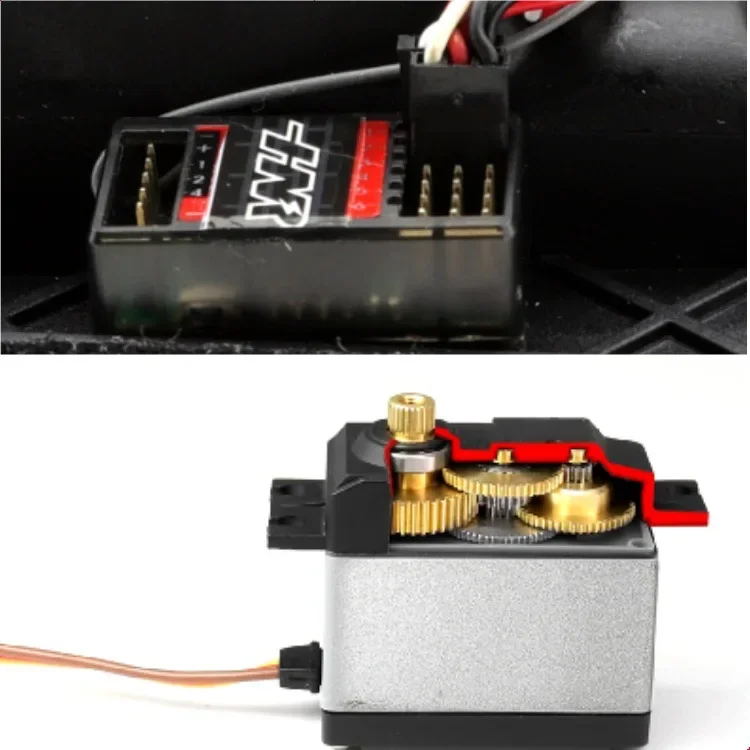

New 2.4G anti-5-channel remote control receiving system, built-in DVC dynamic body stability control system and multi-function light control system.
*15KG metal tooth servo, splash proof

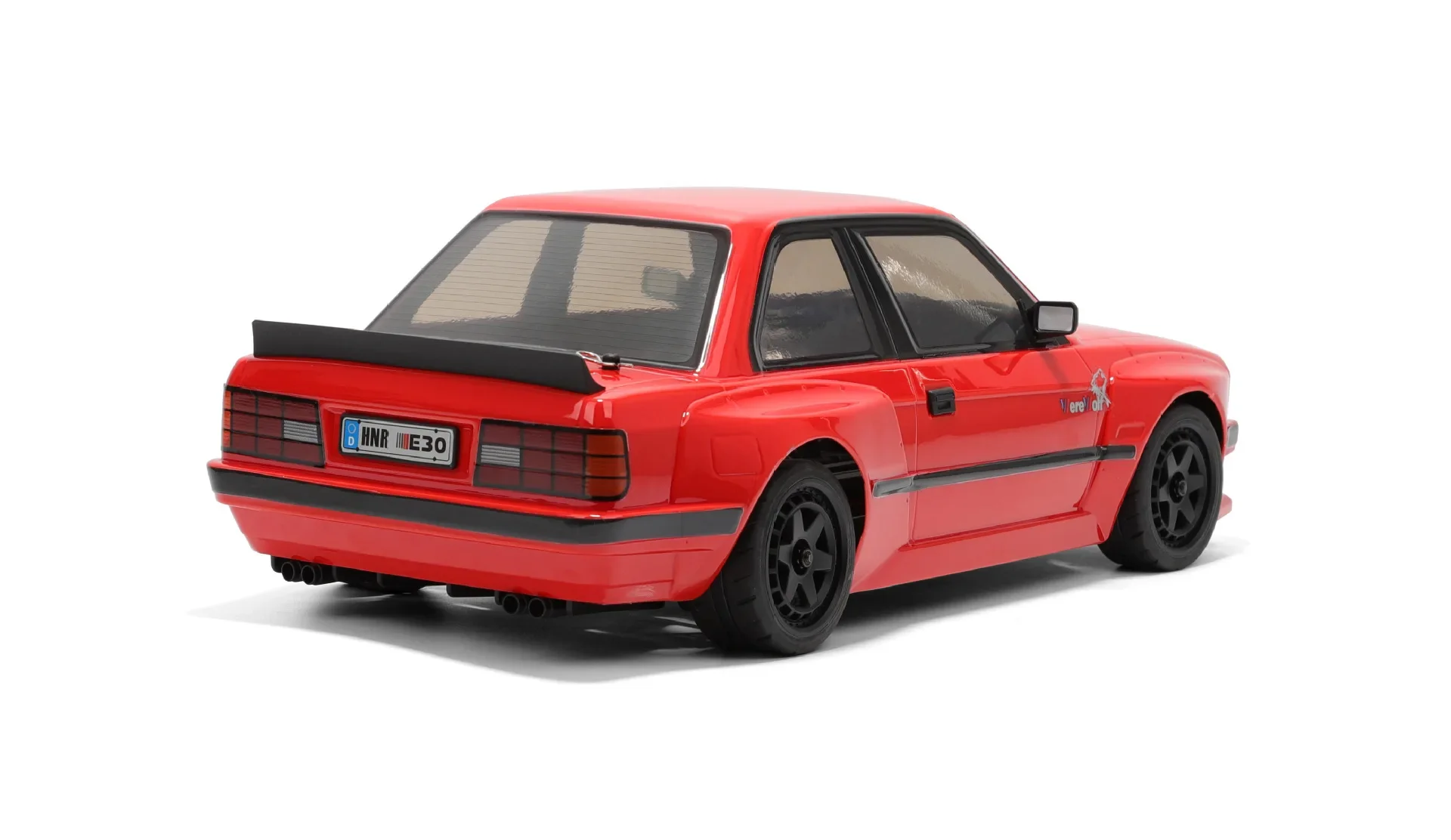

*.1.2MM THICKNESS PC FUEL INJECTION SIMULATION CAR BODY;
*.With front and rear multi-functional entertainment lighting control group;
The car body is equipped with plastic parts such as spoilers and mirrors;
