Street Coilover Suspension Kit for Honda Civic EG/EK/EJ 96-00

Ride Height Adjustable – Drops From 1 to 3 Inch From Factory Ride Height

55CrSi high strength durable cold wound steel & heat treated coils

Manufactured from high quality T-6061 billet aluminum with an anodized finish for superior strength and corrosion protection.

Improved Handling and stability without premature tire wear

Improved Vehicle Stability and traction in hard cornering situations

Full threaded absorber tube casing for independent height adjustment

Twin-Tube System for Comfortable Ride on Streets

Fitment

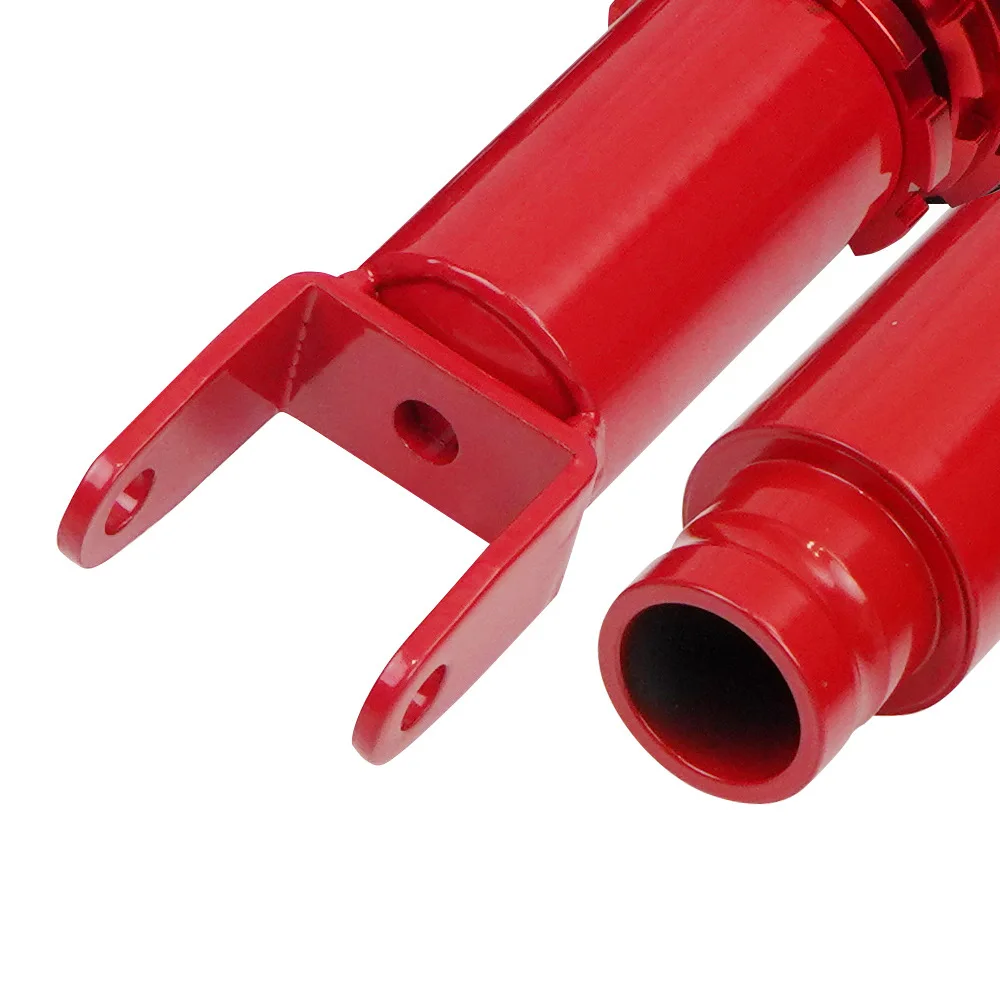

For HONDA CIVIC 1989-1991 ED2 ED3 ED4 ED6 ED7 EC8 EE9 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA CRX 1989-1991 ED8 ED9 EE8 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA CIVIC 1992-1995 EG1 EG2 EG3 EG4 EG5 EG6 EG8 EG9 EJ1 EJ2 EH2 EH3 EH9 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA CIVIC 1995-2000 EK2 EK3 EK4 EJ6 EJ7 EJ8 EM1 Rear FORK TYPE BRACKET MODEL ONLY

For HONDA DELSOL 1993-1997 EG1 Rear FORK TYPE BRACKET MODEL ONLY

For ACURA INTEGRA 1990-2001 DC2 DC4 Rear FORK TYPE BRACKET MODEL ONLY

Specifications

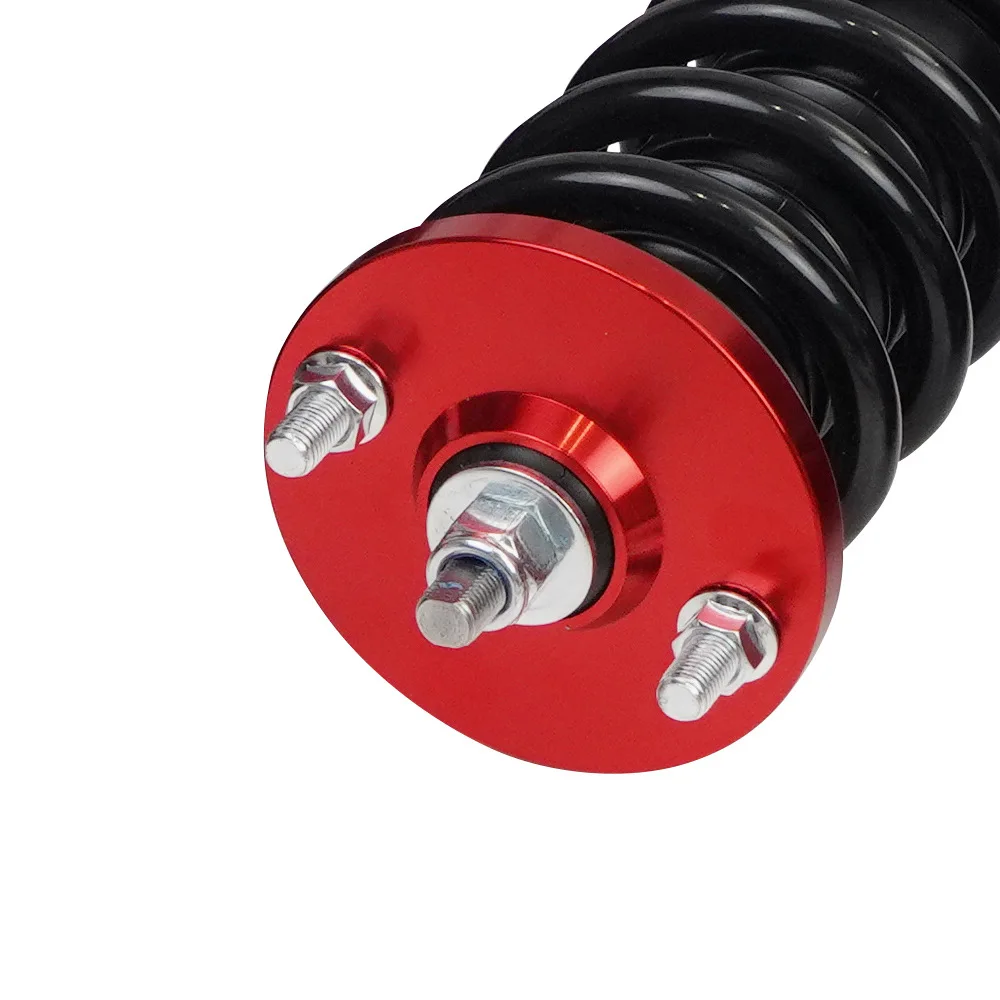

Front and Rear top mount: rubber

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 5 kg/mm (280 lbs/in)

Spring length Front: 180mm

Spring length Rear: 180mm

Adjustable height: Full ride height adjustable, lowering 1-3 inch

Coilover overall length Front: 365mm-410mm

Coilover overall length Rear: 435mm-480mm

Rod diameter: Front-22mm / rear-12.5mm

Shock type: Twin tube

Spring Preload: 7-10 mm

Package Included

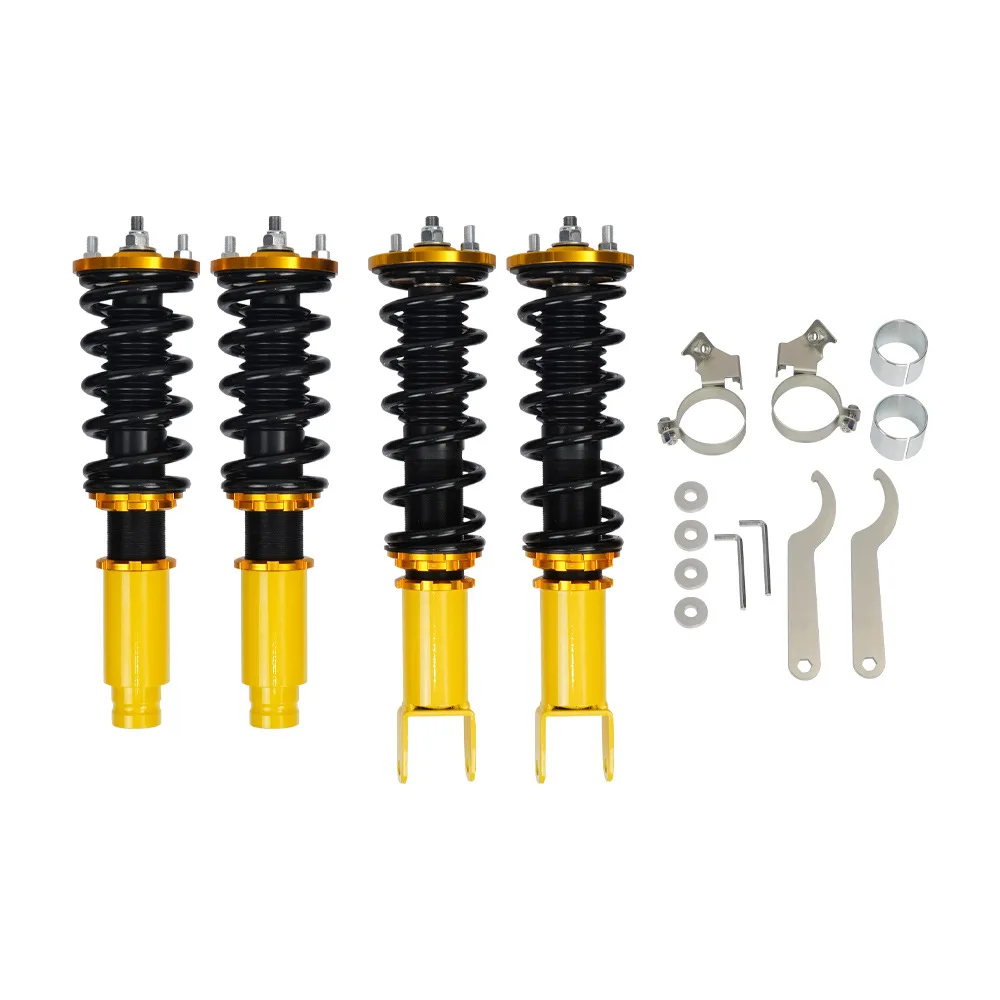

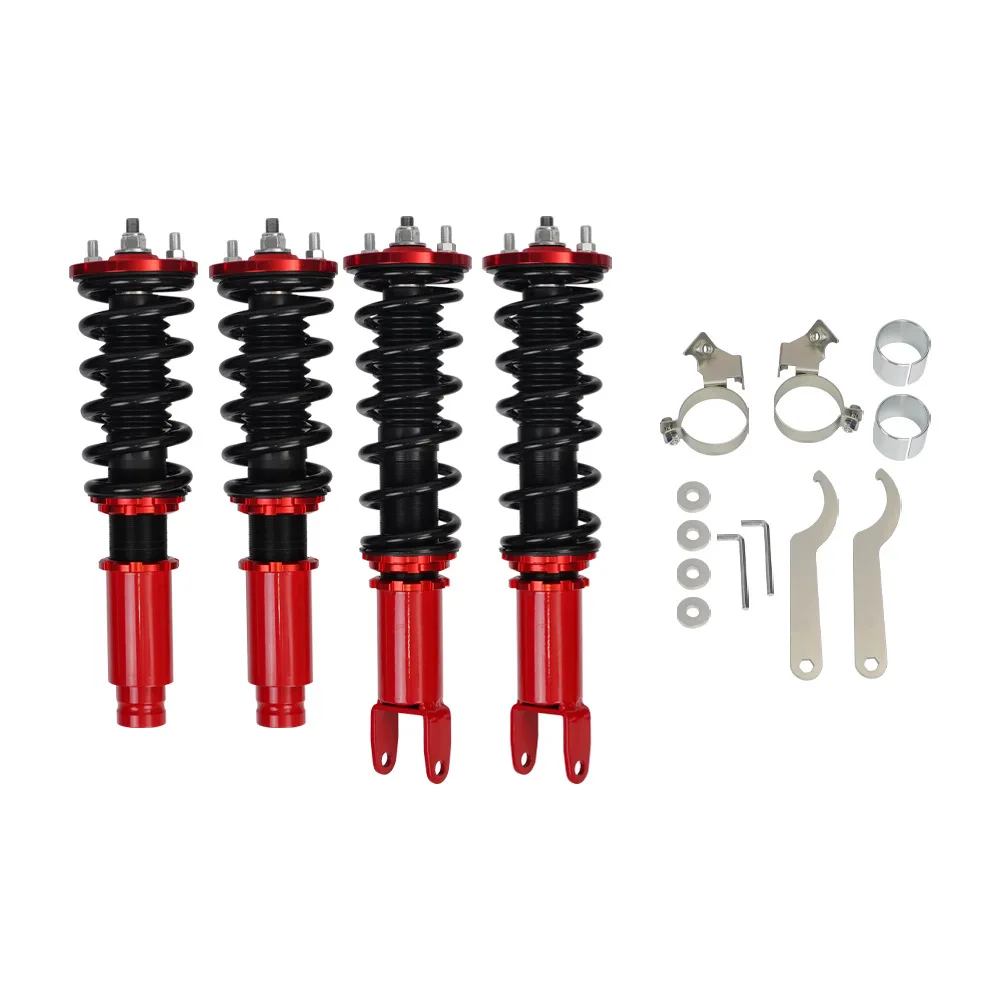

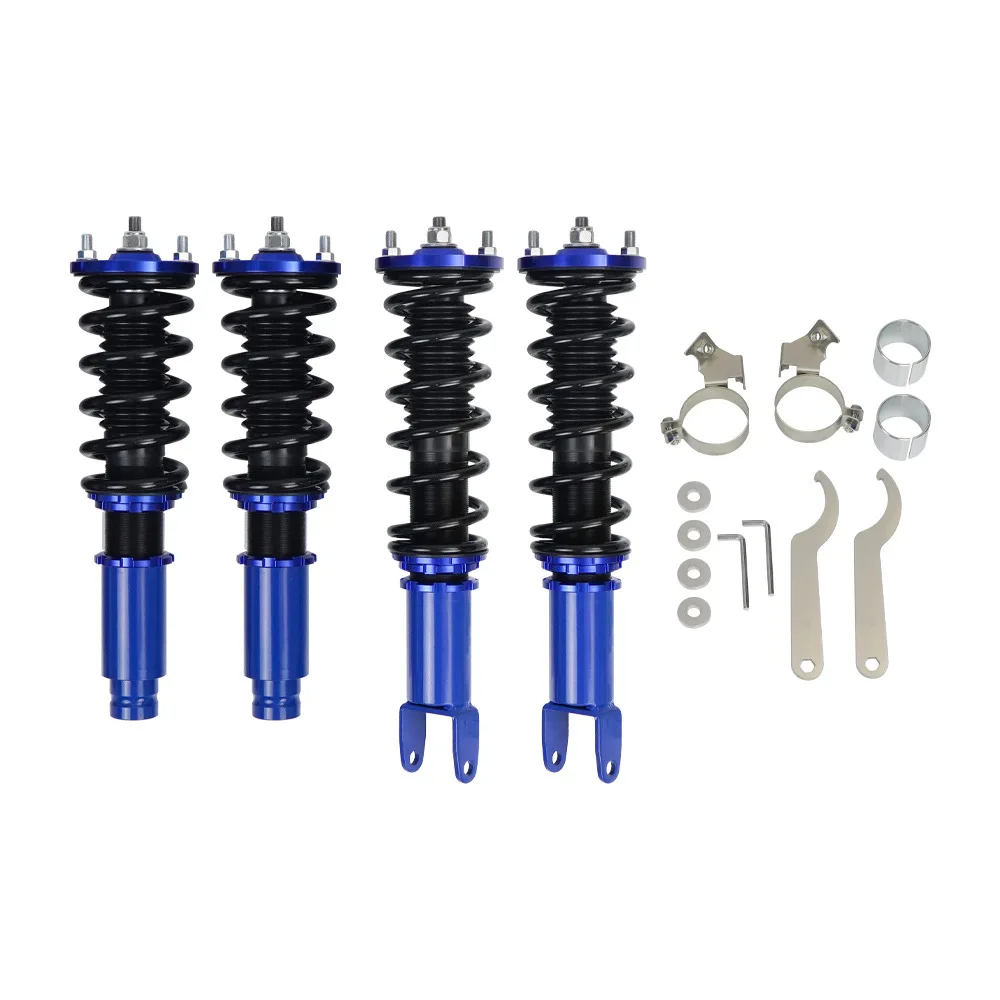

– Complete coilovers assembly 2 front and 2 rear

– A pair wrench for height adjustment

– Sleeves and washers for some vehiles
